Tektronix

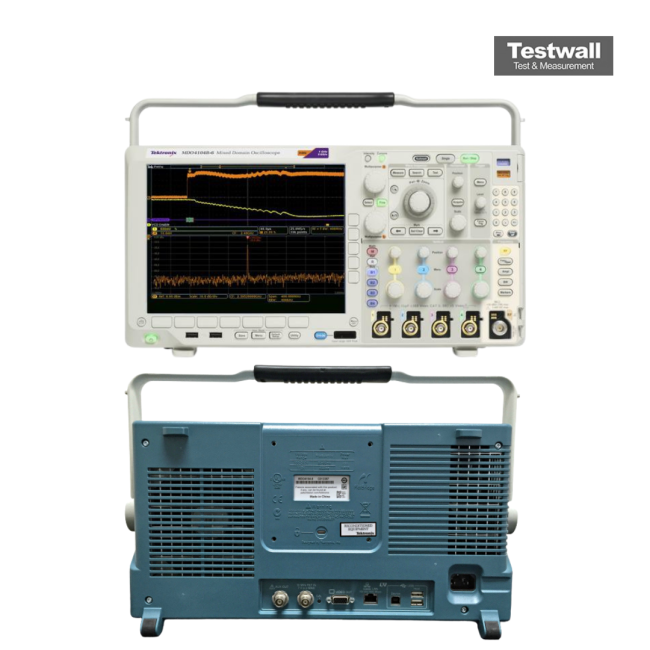

Tektronix MDO4104B-6
Mixed Domain Oscilloscope, 1 GHz 4 + 16 ch., 5 GS/s, 6 GHz RF Ch.
1 GHz Bandwidth
4 Analog Channels
5 GS/s Sample Rate
20 M points Record Length
6 GHz Integrated Spectrum Analyzer RF Bandwidth
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Analog Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points |
| Integrated Spectrum Analyzer RF Bandwidth | 6 GHz |
| Digital Channels | 16 (with optional MDO4000B Series Logic Analyzer module) |
| Vertical Resolution | 8 bits |
| Waveform Capture Rate | 340,000 waveforms per second |
| Display | 9 inch (228 mm) TFT color display, 800 x 480 resolution |
| Arbitrary Function Generator (AFG) Output | 50 MHz AFG with 128 K point record length (optional) |
Tektronix MDO4104B-6 Options:
- MDO4104B-6 - A0 - North America power plug (115 V, 60 Hz)
- MDO4104B-6 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MDO4104B-6 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MDO4104B-6 - A3 - Australia power plug (240 V, 50 Hz)
- MDO4104B-6 - A5 - Switzerland power plug (220 V, 50 Hz)
- MDO4104B-6 - A6 - Japan power plug (100 V, 50/60 Hz)
- MDO4104B-6 - A10 - China power plug (50 Hz)
- MDO4104B-6 - A11 - India power plug (50 Hz)
- MDO4104B-6 - A12 - Brazil power plug (60 Hz)
- MDO4104B-6 - A99 - No power cord
- MDO4104B-6 - L0 - English manual
- MDO4104B-6 - L1 - French manual
- MDO4104B-6 - L2 - Italian manual
- MDO4104B-6 - L3 - German manual
- MDO4104B-6 - L4 - Spanish manual
- MDO4104B-6 - L5 - Japanese manual
- MDO4104B-6 - L6 - Portuguese manual
- MDO4104B-6 - L7 - Simplified Chinese manual
- MDO4104B-6 - L8 - Traditional Chinese manual
- MDO4104B-6 - L9 - Korean manual
- MDO4104B-6 - L10 - Russian manual
- MDO4104B-6 - L99 - No manual
- MDO4104B-6 - C3 - Calibration Service 3 Years
- MDO4104B-6 - C5 - Calibration Service 5 Years
- MDO4104B-6 - D1 - Calibration Data Report
- MDO4104B-6 - D3 - Calibration Data Report 3 Years (with Opt. C3)
- MDO4104B-6 - D5 - Calibration Data Report 5 Years (with Opt. C5)
- MDO4104B-6 - G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MDO4104B-6 - G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MDO4104B-6 - R5 - Repair Service 5 Years (including warranty)
- MDO4104B-6 - SILV900 - Standard warranty extended to 5 years
- MDO4104B-6 - DPO4BND - Application bundle module enabling all functionality of DPO4AERO, DPO4AUDIO, DPO4AUTO, DPO4COMP, DPO4EMBD, DPO4ENET, DPO4LMT, DPO4PWR, DPO4USB and DPO4VID application modules
- MDO4104B-6 - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MDO4104B-6 - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MDO4104B-6 - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN and LIN)
- MDO4104B-6 - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, and FlexRay)
- MDO4104B-6 - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MDO4104B-6 - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C and SPI)
- MDO4104B-6 - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T and 100BASE-TX)
- MDO4104B-6 - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, and high-speed)
- MDO4104B-6 - DPO4PWR - Power Analysis Application Module
- MDO4104B-6 - DPO4LMT - Limit and Mask Testing Application Module
- MDO4104B-6 - DPO4VID - HDTV and Custom (nonstandard) Video Triggering and Video Picture Module
- MDO4104B-6 - MDO4TRIG - Advanced RF Power Level Triggering Module
| Model | MDO4104B-6 |
|---|
The Tektronix MDO4104B-6 Mixed Domain Oscilloscope integrates 1 GHz bandwidth, 4 analog channels, and 5 GS/s sampling, plus a 6 GHz RF input. It includes 16 digital channels and a spectrum analyzer with a frequency range from 9 kHz to 6 GHz. This powerful all-in-one instrument provides 20M record length per channel and a rapid 350 ps rise time, offering unmatched signal visibility across domains.
Ideal for engineers debugging embedded RF systems, it enables synchronized viewing of time and frequency domain behavior for accurate diagnostics and performance evaluation.
Testwall can supply the used Tektronix MDO4104B-6, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4104B-6.
