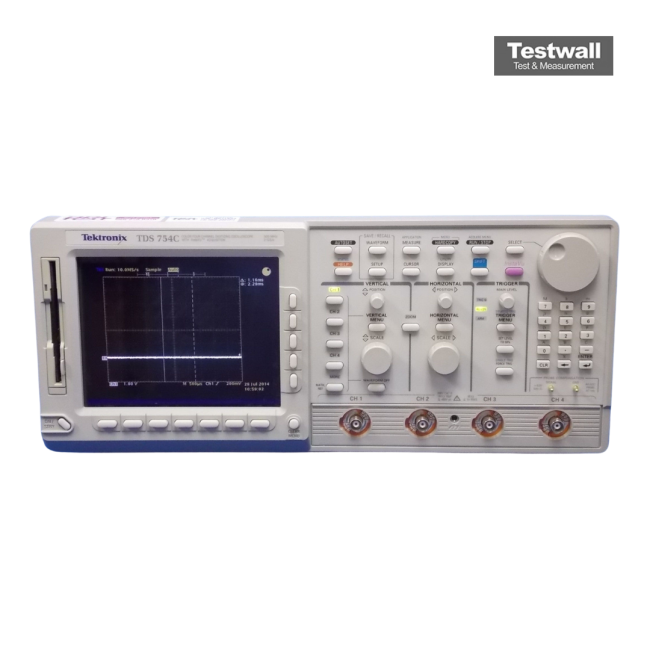

Tektronix TDS754C
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GS/s on all channels simultaneously |
| Record Length | Up to 15,000 points per channel |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Vertical Sensitivity | 1 mV/div to 10 V/div |
| Time Base Range | 500 ps/div to 10 s/div |
| Display | 10.2-inch color LCD display |
| Input Impedance | 1 MΩ or 50 Ω selectable |
| Trigger Types | Edge, Glitch, Runt, Slew Rate, Logic, Pulse Width, Setup/Hold |
Tektronix TDS754C Options:
- TDS754C - Opt. 05 - Add video trigger (NTSC, PAL, HDTV, FlexFormat™)
- TDS754C - Opt. 1M - Add 130 K/channel memory length (500 K max on TDS 754C)
- TDS754C - Opt. 2M - Add 2M/channel memory length (8 M max on TDS 784C, TDS 754C, TDS 540C); includes internal hard disk drive
- TDS754C - Opt. HD - Internal 170 MB hard disk drive
- TDS754C - Opt. 2C - Communication Signal Analyzer: includes comm triggers and communication mask testing
- TDS754C - Opt. 3C - Short-wavelength (Fibre Channel FC133, FC266, FC513, FC1063) Optical Reference Receiver; includes P6701B and system calibration
- TDS754C - Opt. 4C - Long-wavelength (SONET/SDH OC1/STM0, OC3/STM1, OC12/STM4) Optical Reference Receiver; includes P6703B and system calibration
- TDS754C - Opt. 23 - Add 4 each P6243 active probes
- TDS754C - Opt. 4D - Delete 4 each standard probes
- TDS754C - Opt. 3I/3P - Color printer and cable (220 V/110 V)
- TDS754C - Opt. B2 - Hardcopy version of the programmer's manual (070-9876-00)
- TDS754C - Opt. L1 - Substitute French user manual (070-9872-00) for English user manual
- TDS754C - Opt. L3 - Substitute German user manual (070-9873-00) for English user manual
- TDS754C - Opt. L5 - Substitute Japanese user manual (070-9870-00) for English user manual
- TDS754C - Opt. L9 - Substitute Korean user manual (070-9871-00) for English user manual
- TDS754C - Opt. A1 - European power cord (220 V, 50 Hz)
- TDS754C - Opt. A2 - UK power cord (240 V, 50 Hz)
- TDS754C - Opt. A3 - Australian power cord (240 V, 50 Hz)
- TDS754C - Opt. A4 - North American power cord (240 V, 60 Hz)
- TDS754C - Opt. A5 - Swiss power cord (220 V, 50 Hz)
- TDS754C - Opt. 1K - Add K420 scope cart
- TDS754C - Opt. 1R - Rackmount kit
- TDS754C - Opt. C3 - Three years of Calibration Services
- TDS754C - Opt. C5 - Five years of Calibration Services
- TDS754C - Opt. D3 - Test Data (requires Opt. C3)
- TDS754C - Opt. D5 - Test Data (requires Opt. C5)
- TDS754C - Opt. R5 - Repair warranty extended to cover five years
| Model | TDS754C |
|---|
The Tektronix TDS754C oscilloscope delivers 500 MHz bandwidth and 2 GS/s across four channels, equipped with InstaVu acquisition technology for capturing over 400,000 wfms/s. It supports advanced waveform analysis via FFT, high-resolution acquisition with optional 8M points, and versatile triggering including setup/hold, glitch, and comm signal types. Features like 1 mV/div sensitivity, 1 ns peak detect, and comprehensive I/O connectivity make it ideal for precision measurement.
With a color display, graphical UI, and over 200 icons, the TDS754C simplifies high-performance signal debug. Waveform histograms, limit tests, and communication protocol analysis including SONET/SDH make it a powerful tool for R&D and digital engineering.
Testwall can supply the used Tektronix TDS754C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS754C.
