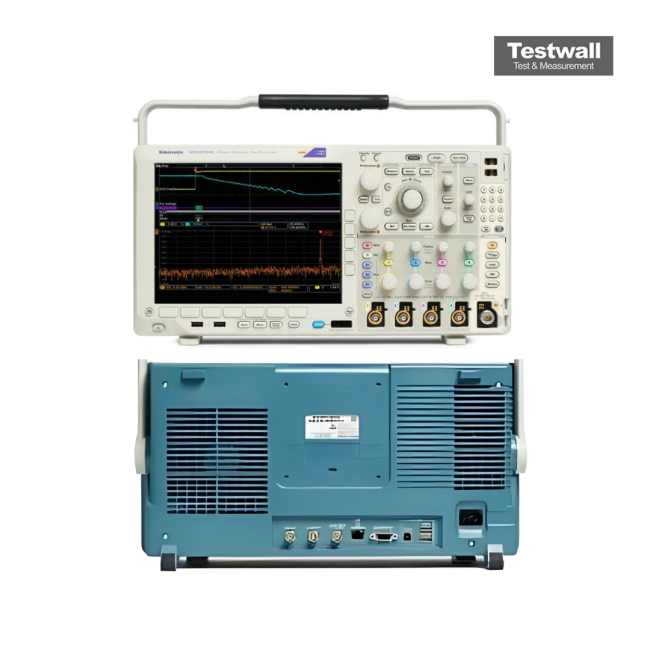

Tektronix MDO4104C
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 5 GS/s |
| Record Length | 20 M points |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Integrated Spectrum Analyzer Frequency Range | 9 kHz to 3 GHz |
| Digital Channels | 16 (via optional logic probe) |
| Arbitrary Function Generator (AFG) | Integrated, 50 MHz |
| Display | 10.4 inch (264 mm) color LCD touchscreen |
| Waveform Capture Rate | 340,000 waveforms per second |
Tektronix MDO4104C Options:
Options available for the Tektronix MDO4000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MDO4104C - MDO4AFG - Built-in 50 MHz arbitrary/function generator
- MDO4104C - MDO4MSO - Mixed signal option, 16 digital channels
- MDO4104C - MDO4SA3 - Spectrum analyzer input 9 kHz - 3 GHz
- MDO4104C - MDO4SA6 - Spectrum analyzer input 9 kHz - 6 GHz
- MDO4104C - MDO4TRIG - Advanced RF power level triggering
- MDO4104C - MDO4SEC - Enhanced security
- MDO4104C - DPO4AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MDO4104C - DPO4AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MDO4104C - DPO4AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MDO4104C - DPO4AUTOMAX - Extended automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MDO4104C - DPO4COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MDO4104C - DPO4EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MDO4104C - DPO4ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MDO4104C - DPO4USB - USB 2.0 serial triggering and analysis
- MDO4104C - DPO4LMT - Limit and mask testing
- MDO4104C - DPO4PWR - Power measurement and analysis
- MDO4104C - DPO4VID - Extended video triggering
- MDO4104C - DPO4BND - Application bundle (all DPO4 serial, power, limit/mask and video modules)
The Tektronix MDO4104C is a 6-in-1 integrated oscilloscope combining a 1000 MHz bandwidth, 4 analog and 16 digital channels, and a 5 GS/s sample rate. It operates on Windows with a deep memory of 20 Mpts.
This benchtop unit includes a spectrum analyzer, function generator, logic and protocol analyzers, and a frequency counter, perfect for embedded system and IoT debugging.
Testwall can supply the used Tektronix MDO4104C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO4104C.
