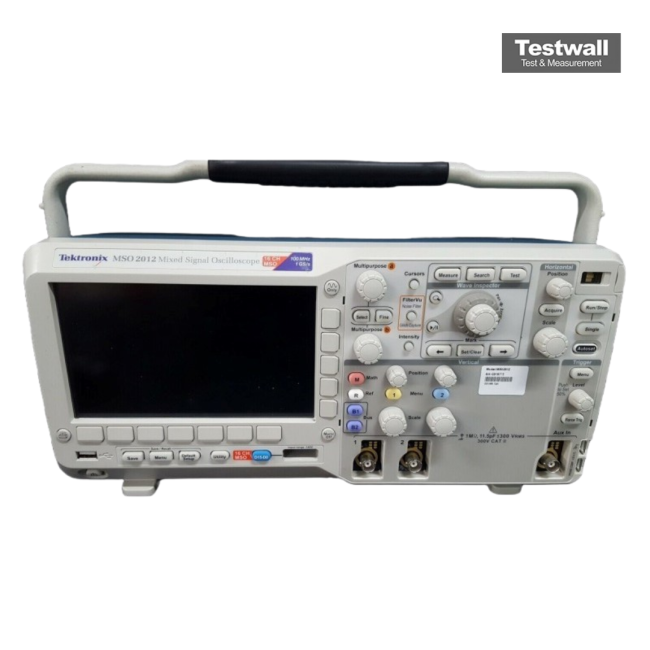

Tektronix MSO2012
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Input Impedance | 1 MΩ |
| Display | 7-inch WVGA color display |
| Connectivity | USB 2.0 Host and Device ports |
Tektronix MSO2012 Options:
Options available for the Tektronix DPO/MSO2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO2012 - DPO2AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO2012 - DPO2COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO2012 - DPO2EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO2012 - DPO2PWR - Power measurement and analysis
- MSO2012 - DPO2BND - Application bundle (DPO2AUTO, DPO2COMP, DPO2EMBD, DPO2PWR)
- MSO2012 - DPO2CONN - Connectivity module (10/100 Ethernet, VGA output)
The Tektronix MSO2012 is a 100 MHz, 2+16 channel Mixed Signal Oscilloscope designed to simplify debugging of embedded and mixed signal designs. It features 1 GS/s sample rate, 1 Mpts record length, and advanced trigger options for precision signal analysis.
Ideal for embedded, automotive, and power electronics applications, it supports parallel bus analysis, Wave Inspector navigation, and time-correlation of analog and digital signals.
Testwall can supply the used Tektronix MSO2012, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2012.
