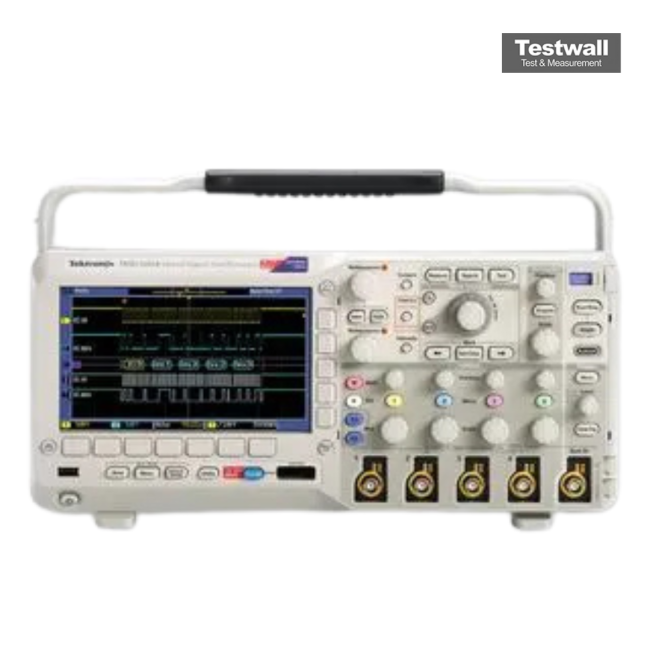

Tektronix MSO2014
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Display | 7-inch WVGA color display |
| Connectivity | USB Host and Device ports, CompactFlash |
| Serial Bus Triggering and Analysis | I2C, SPI, CAN, LIN, RS-232/422/485/UART |
Tektronix MSO2014 Options:
Options available for the Tektronix DPO/MSO2000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO2014 - DPO2AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO2014 - DPO2COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO2014 - DPO2EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO2014 - DPO2PWR - Power measurement and analysis
- MSO2014 - DPO2BND - Application bundle (DPO2AUTO, DPO2COMP, DPO2EMBD, DPO2PWR)
- MSO2014 - DPO2CONN - Connectivity module (10/100 Ethernet, VGA output)
The Tektronix MSO2014 is a 4-channel Mixed Signal Oscilloscope with 100 MHz bandwidth and 1 GS/s sampling rate, supporting both analog and 16 digital channels for advanced debugging tasks.
Equipped with built-in protocol decoders for I²C, SPI, and UART, it offers versatile signal analysis, USB connectivity, and PC software support for streamlined embedded system diagnostics.
Testwall can supply the used Tektronix MSO2014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2014.
