Keysight (Agilent) DSOX3052T
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with memory upgrade) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional), USB Device port for PC connectivity |
Keysight (Agilent) DSOX3052T Options:
- DSOX3052T - DSOX3MEMUP - Memory upgrade (standard 2 Mpts to optional 4 Mpts)
- DSOX3052T - DSOX3SGM - Segmented memory
- DSOX3052T - DSOX3MSO - MSO upgrade: add 16 digital timing channels (for 500 MHz and below models)
- DSOX3052T - DSOX3WAVEGEN - WaveGen built-in 20 MHz function/arbitrary waveform generator
- DSOX3052T - DSOXDVM - Integrated 3-digit digital voltmeter (DVM)
- DSOX3052T - DSOX3MASK - Mask limit testing
- DSOX3052T - DSOX3ADVMATH - Advanced waveform math
- DSOX3052T - DSOX3VID - Enhanced video/TV triggering and analysis package
- DSOX3052T - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX3052T - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX3052T - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- DSOX3052T - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DSOX3052T - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3052T - DSOX3AERO - Aerospace serial triggering and analysis (MIL-STD 1553, ARINC 429)
- DSOX3052T - DSOX3PWR - Power measurements and analysis
- DSOX3052T - DSOXEDK - Educator's oscilloscope training kit
- DSOX3052T - DSOX3BW52 - License-only bandwidth upgrade: 350 MHz to 500 MHz, 2 ch
- DSOX3052T - DSOX3BW12 - Return-to-Keysight service center bandwidth upgrade: 500 MHz to 1 GHz, 2 ch
- DSOX3052T - DSOXLAN - LAN/VGA connection module
- DSOX3052T - DSOXGPIB - GPIB connection module
| Model | DSOX3052T |
|---|

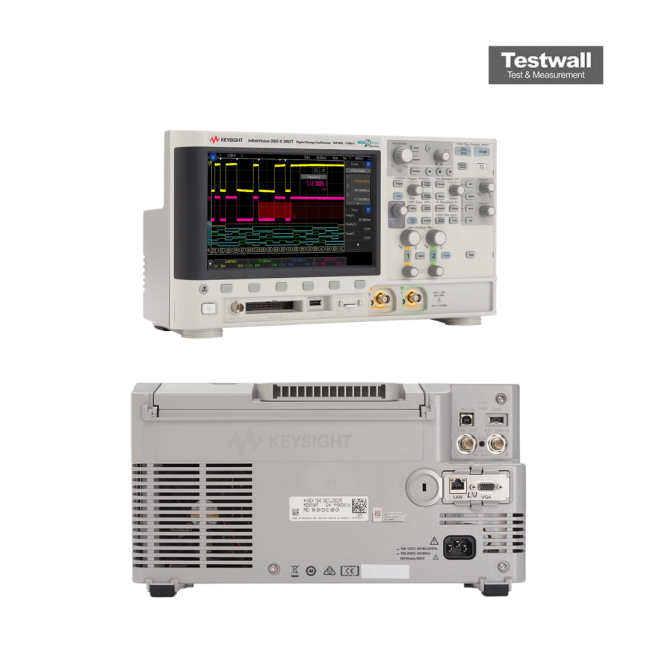

The Keysight (Agilent) DSOX3052T Oscilloscope is a 2-channel, upgradable unit in the InfiniiVision 3000 X-Series, integrating MegaZoom IV smart memory and a fast 1 million waveforms/sec update rate. It features a large 8.5-inch WVGA display and optional segmented memory.
Designed with 5 instruments in one—oscilloscope, digital channels, waveform generator, digital voltmeter, and protocol analyzer—it supports advanced debugging and offers bandwidth upgradeability to 1 GHz.
Testwall can supply the used Keysight (Agilent) DSOX3052T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3052T.
