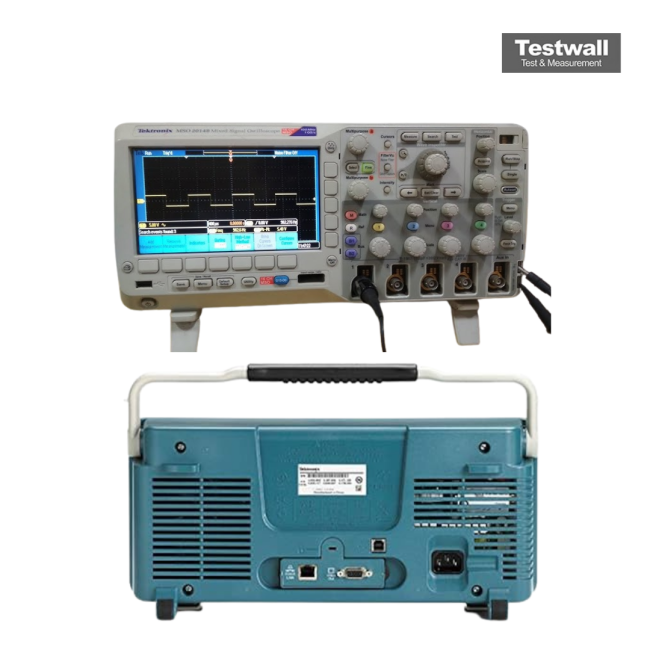

Tektronix MSO2014B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 4 |
| Digital Channels | 16 |
| Sample Rate | 1 GS/s |
| Record Length | 1 M points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Display | 7-inch WVGA (800 x 480) TFT Color Display |
| Serial Bus Triggering and Analysis | I2C, SPI, CAN, LIN, RS-232/422/485/UART (optional) |
| Connectivity | USB Host, USB Device, CompactFlash |
| Model | MSO2014B |
|---|
The Tektronix MSO2014B is a 100 MHz Mixed Signal Oscilloscope featuring a 1 GS/s sampling rate across 4 analog channels. It integrates digital and analog signal analysis with 16 digital channels, advanced triggering, and Wave Inspector controls for efficient navigation. Its deep memory of 1 M points and powerful analysis tools make it ideal for embedded system debugging.
Perfect for analyzing digital and analog signals simultaneously, it supports time-correlated measurements and protocol decoding for SPI, I2C, UART, and more.
Testwall can supply the used Tektronix MSO2014B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO2014B.
