Tektronix MSO22
Mixed signal oscilloscope, 2 analog + 16 digital channels, 70 MHz to 500 MHz, 2.5 GS/s (2 Series MSO)
70 MHz to 500 MHz (by bandwidth option) Bandwidth
2 Number of Analog Channels
16 (optional 2-MSO logic probe) Digital Channels
2.5 GS/s Sample Rate
10 M points Record Length

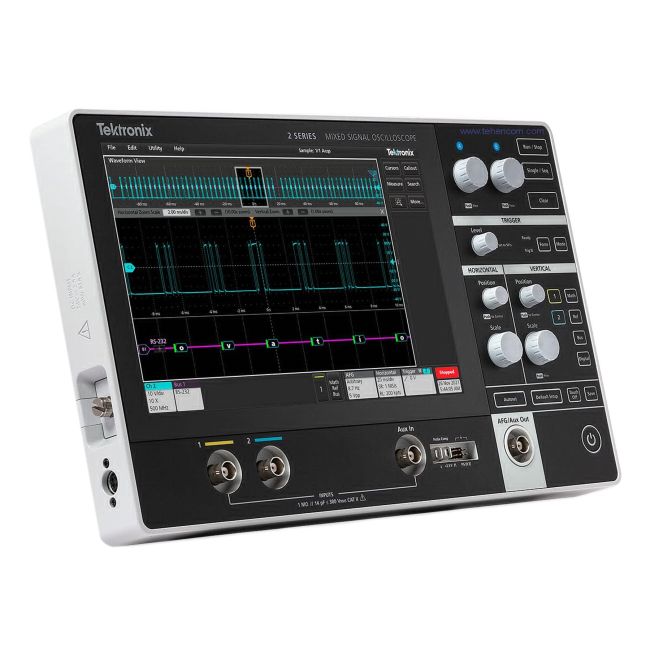

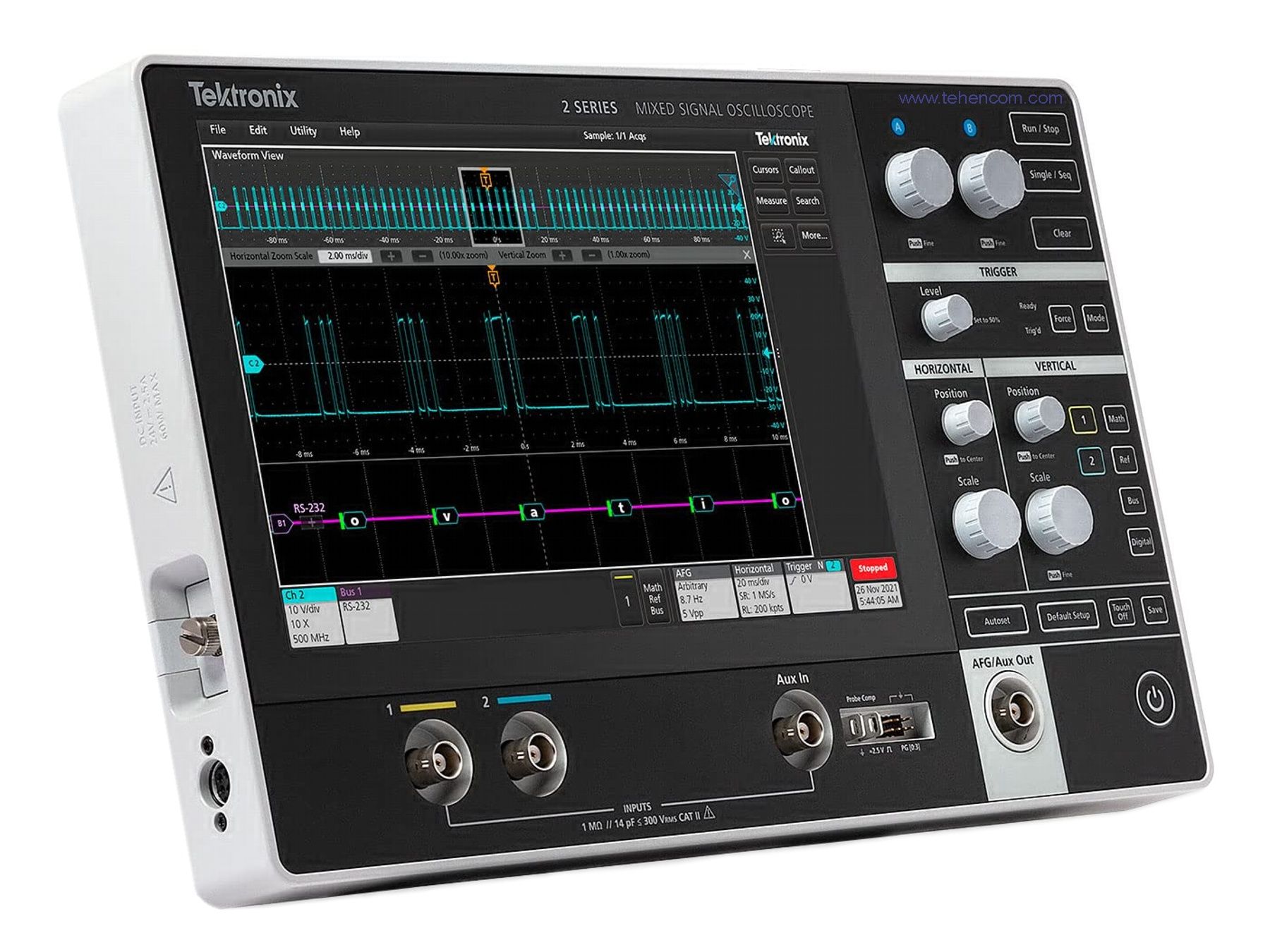

The Tektronix MSO22 is a compact, portable oscilloscope from Tektronix's 2 Series lineup, built for bench or field use.
Key specifications:
- 2 analog channels plus 16 digital channels
- Bandwidth options ranging from 70 MHz to 500 MHz
- Sample rate up to 2.5 GS/s
- Record length up to 10 M points
- 10.1-inch capacitive touchscreen display
- Weighs under 4 pounds and is roughly 1.5 inches thick for easy transport
- Connectivity via USB 2.0 and Gigabit Ethernet
Its combination of portability, touchscreen interface, and mixed-signal capability makes it well suited for engineers, technicians, and students who need reliable signal analysis without a large benchtop footprint.
Available configurations
| Model | Bandwidth | Channels |
| MSO22 2-BW-70 | 70 MHz | 2 |
| MSO22 2-BW-100 | 100 MHz | 2 |
| MSO22 2-BW-200 | 200 MHz | 2 |
| MSO22 2-BW-350 | 350 MHz | 2 |
| MSO22 2-BW-500 | 500 MHz | 2 |
