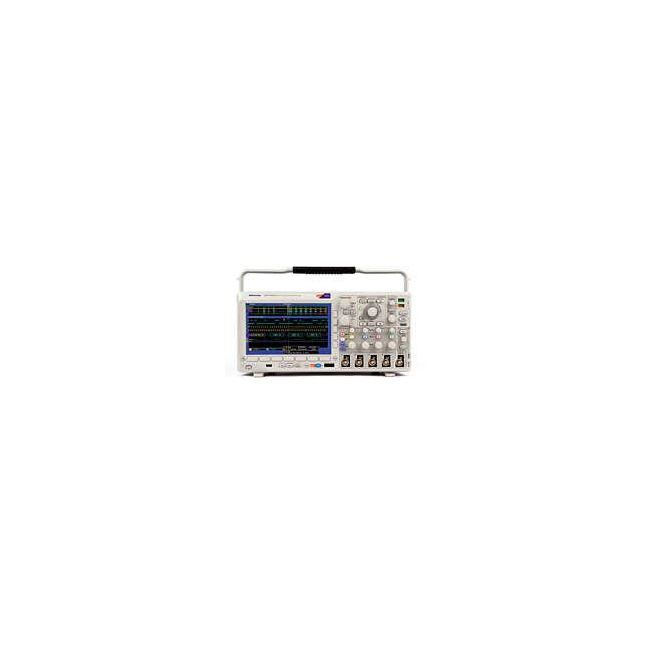

Tektronix MSO3012
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Analog Channels | 2 |
| Digital Channels | 16 |
| Sample Rate | 2.5 GS/s |
| Record Length | 5,000,000 points |
| Vertical Resolution | 8 bits |
| Rise Time | 3.5 ns |
| Display | 7-inch WVGA (800 x 480) TFT LCD Color Display |
| Waveform Capture Rate | 50,000 waveforms per second |
| Connectivity | USB 2.0 Host and Device, Ethernet (LAN), CompactFlash |
Tektronix MSO3012 Options:
Options available for the Tektronix DPO/MSO3000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO3012 - DPO3AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO3012 - DPO3AUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO3012 - DPO3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- MSO3012 - DPO3COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO3012 - DPO3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO3012 - DPO3FLEX - FlexRay serial triggering and analysis
- MSO3012 - DPO3PWR - Power measurement and analysis
- MSO3012 - DPO3VID - Extended video triggering
The Tektronix MSO3012 Mixed-Signal Oscilloscope delivers advanced debugging for complex designs with a 5 Mpoint record length, 50,000 wfm/s capture rate, and 20-channel analysis. It features integrated 16 digital channels with MagniVu™ acquisition and Wave Inspector® controls for precise waveform navigation.
Ideal for engineers, it supports FFT, 29 auto measurements, advanced triggers, and various probe interfaces, with USB/Ethernet connectivity and serial protocol analysis.
Testwall can supply the used Tektronix MSO3012 Mixed-Signal Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO3012 Mixed-Signal Oscilloscope.
