Tektronix

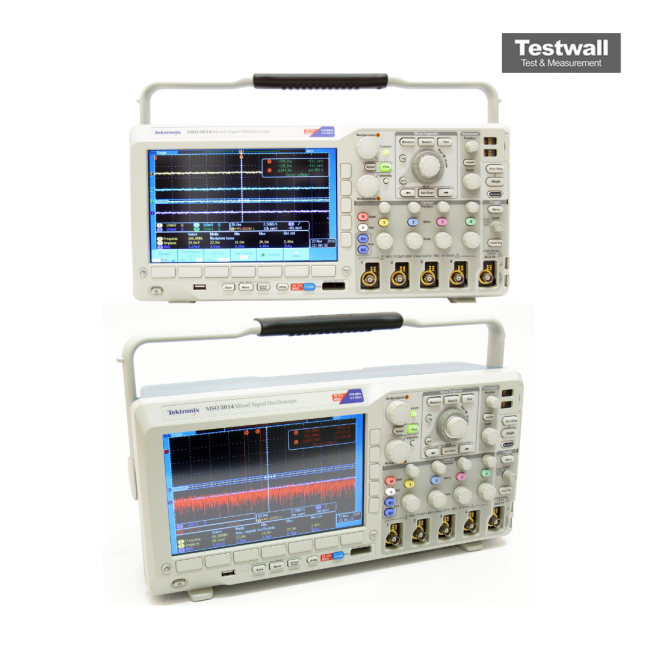

Tektronix MSO3014
Mixed Signal Oscilloscope, 100 MHz 4 + 16 Ch., 2.5 GS/s
4 analog channels + 16 digital channels Number of Channels
100 MHz Bandwidth
2.5 GS/s Sample Rate
5 M points on all channels Record Length
8 bits Vertical Resolution
| Attribute | Value |
|---|---|
| Number of Channels | 4 analog channels + 16 digital channels |
| Bandwidth | 100 MHz |
| Sample Rate | 2.5 GS/s |
| Record Length | 5 M points on all channels |
| Vertical Resolution | 8 bits |
| Display | 10.4 inch (264 mm) WVGA color display |
| Waveform Capture Rate | Up to 50,000 waveforms per second |
| Trigger Types | Edge, Pulse Width, Runt, Logic, Setup & Hold, Rise/Fall Time, Video, Bus (I2C, SPI, CAN, LIN, RS-232/422/485/UART) |
| Input Impedance | 1 MΩ ± 1% in parallel with 13.3 pF ± 2 pF |
| Connectivity | USB 2.0 Host and Device ports, Ethernet (LAN), CompactFlash card slot |
Tektronix MSO3014 Options:
- MSO3014 - DPO3AUDIO - Audio Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2S, Left Justified, Right Justified, TDM, and custom audio buses, as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3014 - DPO3AUTO - Automotive Serial Triggering and Analysis Module. Enables triggering on packet-level information on CAN bus and LIN bus as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3014 - DPO3COMP - Computer Serial Triggering and Analysis Module. Enables triggering on packet-level information on RS-232/422/485/UART buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3014 - DPO3EMBD - Embedded Serial Triggering and Analysis Module. Enables triggering on packet-level information on I2C and SPI buses as well as analytical tools such as digital views of the signal, bus views, packet decoding, search tools, and packet decode tables with time stamp information.
- MSO3014 - DPO3PWR - Power Analysis Module. Enables quick and accurate analysis of power quality, switching loss, harmonics, safe operating area (SOA), modulation, ripple, and slew rate (dI/dt, dV/dt).
- MSO3014 - DPO3VID - HDTV and Custom (nonstandard) Video Triggering Module.
- MSO3014 - Opt. A0 - North America power cord
- MSO3014 - Opt. A1 - Universal Euro power cord
- MSO3014 - Opt. A2 - United Kingdom power cord
- MSO3014 - Opt. A3 - Australia power cord
- MSO3014 - Opt. A5 - Switzerland power cord
- MSO3014 - Opt. A6 - Japan power cord
- MSO3014 - Opt. A10 - China power cord
- MSO3014 - Opt. A11 - India power cord
- MSO3014 - Opt. A99 - No power cord
- MSO3014 - Opt. L0 - English manual
- MSO3014 - Opt. L1 - French manual
- MSO3014 - Opt. L2 - Italian manual
- MSO3014 - Opt. L3 - German manual
- MSO3014 - Opt. L4 - Spanish manual
- MSO3014 - Opt. L5 - Japanese manual
- MSO3014 - Opt. L6 - Portuguese manual
- MSO3014 - Opt. L7 - Simplified Chinese manual
- MSO3014 - Opt. L8 - Traditional Chinese manual
- MSO3014 - Opt. L9 - Korean manual
- MSO3014 - Opt. L10 - Russian manual
- MSO3014 - Opt. L99 - No manual
- MSO3014 - Opt. C3 - Calibration Service 3 years
- MSO3014 - Opt. C5 - Calibration Service 5 years
- MSO3014 - Opt. CA1 - Provides a single calibration event, or coverage for the designated calibration interval, whichever comes first
- MSO3014 - Opt. D1 - Calibration Data Report
- MSO3014 - Opt. D3 - Calibration Data Report 3 years (with Opt. C3)
- MSO3014 - Opt. D5 - Calibration Data Report 5 years (with Opt. C5)
- MSO3014 - Opt. R5 - Repair Service 5 years (including warranty)
| Model | MSO3014 |
|---|
The Tektronix MSO3014 is a 100 MHz bandwidth, 4+16 channel Mixed Signal Oscilloscope offering a 2.5 GS/s sample rate on all channels and a 5 Mpoint record length. It delivers a waveform capture rate of over 50,000 wfm/s and includes a suite of advanced triggers for comprehensive signal analysis.
With Wave Inspector® controls, 29 automated measurements, and FFT analysis, this oscilloscope simplifies waveform navigation and analysis for embedded design and debugging applications.
Testwall can supply the used Tektronix MSO3014, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO3014.
