Tektronix
Tektronix MSO4000B
Mixed Signal Oscilloscope,1 GHz BW, 2/4+16 CH Oscilloscope
200 MHz, 350 MHz, 500 MHz, or 1 GHz (model dependent) Bandwidth
4 analog input channels Analog Channels
16 digital channels (MSO configuration) Digital Channels
Up to 5 GS/s on all analog channels simultaneously Sample Rate
Up to 20 M points record length on all channels Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz, 350 MHz, 500 MHz, or 1 GHz (model dependent) |
| Analog Channels | 4 analog input channels |
| Digital Channels | 16 digital channels (MSO configuration) |
| Sample Rate | Up to 5 GS/s on all analog channels simultaneously |
| Record Length | Up to 20 M points record length on all channels |
| Vertical Resolution | 8-bit resolution (11-bit with Hi Res acquisition mode) |
| Display | 10.4-inch (264 mm) WVGA color display |
| Waveform Capture Rate | Up to 340,000 waveforms per second |
| Serial Bus Analysis | Supports I2C, SPI, CAN, LIN, RS-232/422/485/UART, USB, and more |
| Connectivity | USB 2.0 host and device ports, LAN (RJ-45), CompactFlash card slot |
Tektronix MSO4000B Options:
- MSO4000B - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO4000B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO4000B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO4000B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO4000B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO4000B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MSO4000B - Opt. A10 - China power plug (50 Hz)
- MSO4000B - Opt. A11 - India power plug (50 Hz)
- MSO4000B - Opt. A12 - Brazil power plug (60 Hz)
- MSO4000B - Opt. A99 - No power cord
- MSO4000B - Opt. L0 - English manual
- MSO4000B - Opt. L1 - French manual
- MSO4000B - Opt. L2 - Italian manual
- MSO4000B - Opt. L3 - German manual
- MSO4000B - Opt. L4 - Spanish manual
- MSO4000B - Opt. L5 - Japanese manual
- MSO4000B - Opt. L6 - Portuguese manual
- MSO4000B - Opt. L7 - Simplified Chinese manual
- MSO4000B - Opt. L8 - Traditional Chinese manual
- MSO4000B - Opt. L9 - Korean manual
- MSO4000B - Opt. L10 - Russian manual
- MSO4000B - Opt. L99 - No manual
- MSO4000B - Opt. C3 - Calibration Service 3 Years
- MSO4000B - Opt. C5 - Calibration Service 5 Years
- MSO4000B - Opt. D1 - Calibration Data Report
- MSO4000B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO4000B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO4000B - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO4000B - Opt. SILV600 - Standard warranty extended to 5 years
- MSO4000B - DPO4BND - Application bundle module enabling all functionality of DPO4AERO, DPO4AUDIO, DPO4AUTO, DPO4COMP, DPO4EMBD, DPO4ENET, DPO4LMT, DPO4PWR, DPO4USB and DPO4VID application modules
- MSO4000B - DPO4AERO - Aerospace Serial Triggering and Analysis Module (MIL-STD-1553)
- MSO4000B - DPO4AUDIO - Audio Serial Triggering and Analysis Module (I2S, LJ, RJ, TDM)
- MSO4000B - DPO4AUTO - Automotive Serial Triggering and Analysis Module (CAN, LIN)
- MSO4000B - DPO4AUTOMAX - Extended Automotive Serial Triggering and Analysis Module (CAN, LIN, FlexRay)
- MSO4000B - DPO4COMP - Computer Serial Triggering and Analysis Module (RS-232/422/485/UART)
- MSO4000B - DPO4EMBD - Embedded Serial Triggering and Analysis Module (I2C, SPI)
- MSO4000B - DPO4ENET - Ethernet Serial Triggering and Analysis Module (10BASE-T, 100BASE-TX)
- MSO4000B - DPO4USB - USB Serial Triggering and Analysis Module (low-speed, full-speed, high-speed)
- MSO4000B - DPO4PWR - Power Analysis Application Module
- MSO4000B - DPO4LMT - Limit and Mask Testing Application Module
- MSO4000B - DPO4VID - HDTV and Custom (nonstandard) Video Triggering and Video Picture Module
| Model | MSO4000B |
|---|

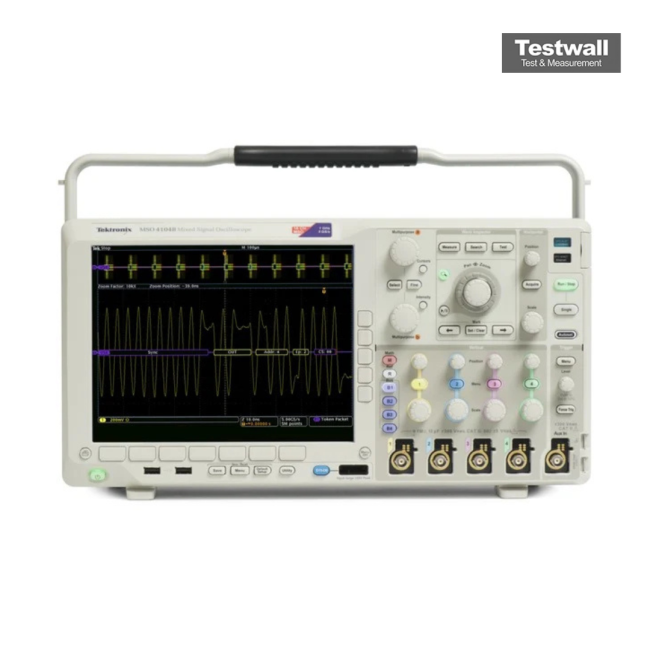

The Tektronix MSO4000B Mixed Signal Oscilloscope features 2 or 4 analog and 16 digital channels, up to 1 GHz bandwidth and 5 GS/s sample rate. It enables fast, synchronized analysis across analog, digital, and serial buses.
Includes Wave Inspector®, automated measurements, protocol decoding, and MagniVu™ timing for high-resolution signal debugging, all within a compact 5.8” deep unit.
Testwall can supply the used Tektronix MSO4000B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO4000B.
