Teledyne LeCroy

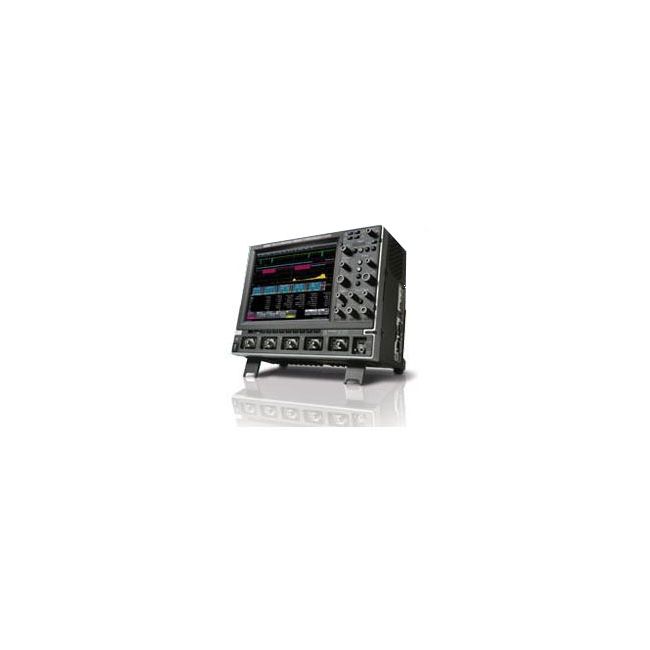

LeCroy WaveRunner 204Xi
4 Channel 5GSa/s 2GHz Digital Oscilloscope
2 GHz Bandwidth
4 Number of Channels
10 GS/s (on 2 channels), 5 GS/s (on 4 channels) Maximum Sample Rate
Up to 32 Mpts/ch (standard 12.5 Mpts/ch) Memory Depth
8 bits (up to 11 bits with enhanced resolution) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Number of Channels | 4 |
| Maximum Sample Rate | 10 GS/s (on 2 channels), 5 GS/s (on 4 channels) |
| Memory Depth | Up to 32 Mpts/ch (standard 12.5 Mpts/ch) |
| Vertical Resolution | 8 bits (up to 11 bits with enhanced resolution) |
| Input Impedance | 50 Ω or 1 MΩ selectable |
| Timebase Range | 200 ps/div to 1000 s/div |
| Display | 10.4-inch color LCD touchscreen |
| Trigger Types | Edge, Width, Pattern, Qualified, Slew Rate, Serial (I2C, SPI, UART, CAN, LIN, and more) |
| Connectivity / Interface | USB, Ethernet (LAN), GPIB (optional), CompactFlash card slot |
| Model | WaveRunner 204Xi |
|---|
The LeCroy WaveRunner 204Xi offers 2 GHz bandwidth and 10 GS/s sample rate, providing detailed signal capture with deep memory and advanced real-time digital filtering and math capabilities.
This oscilloscope is optimized for complex high-speed digital and analog signal analysis, including serial data decoding and jitter measurement tools for enhanced debugging precision.
Testwall can supply the used LeCroy WaveRunner 204Xi, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the LeCroy WaveRunner 204Xi.
