Tektronix MSO46 4-BW-1500
| Attribute | Value |
|---|---|
| Bandwidth | 1.5 GHz (option 4-BW-1500) |
| Number of Analog Channels | 6 FlexChannel inputs |
| Digital Channels | Up to 48 (with TLP058 FlexChannel logic probes) |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points standard (62.5 M optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | > 500,000 waveforms per second |
| Series | Tektronix 4 Series MSO |

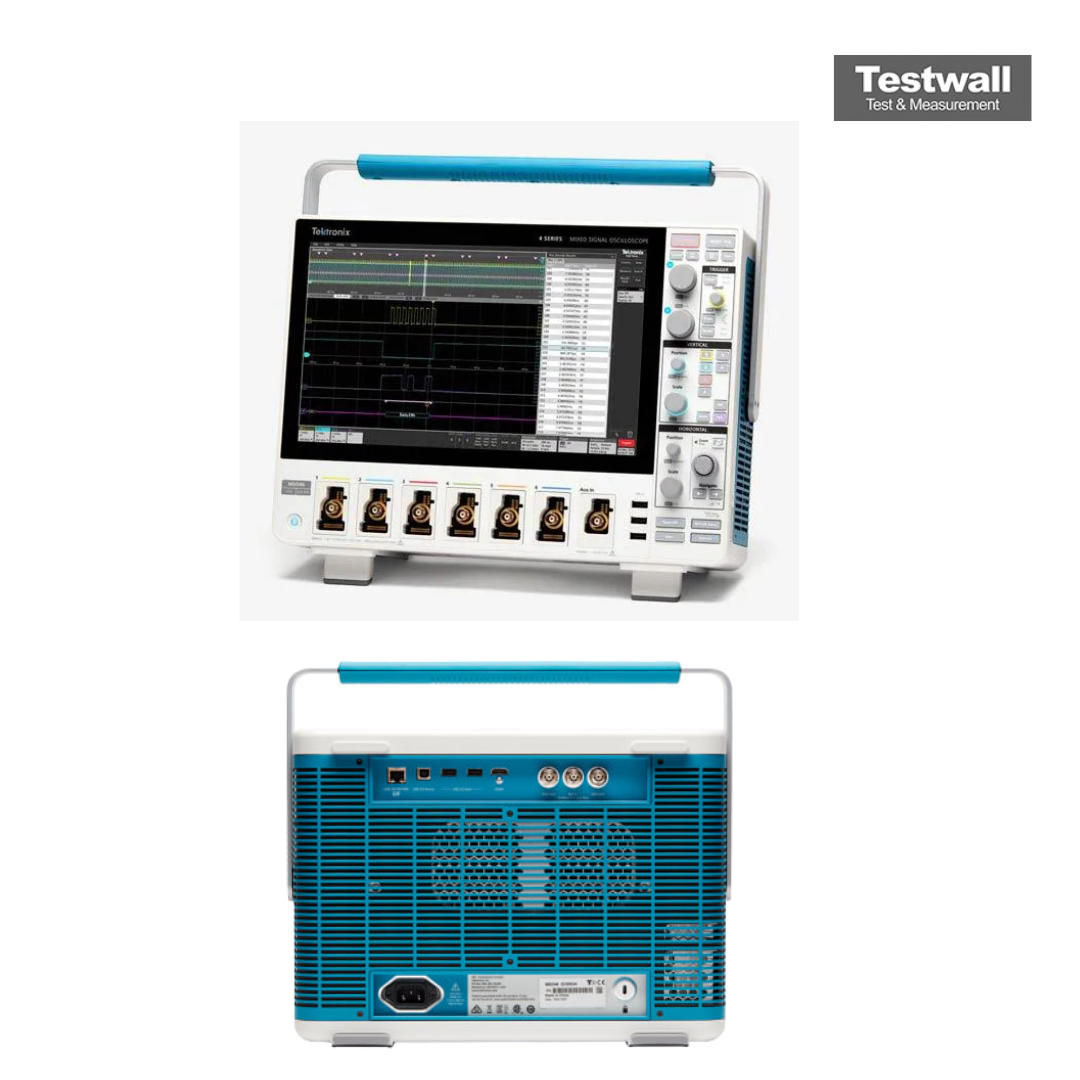

The Tektronix MSO46 4-BW-1500 is the 1.5 GHz bandwidth configuration of the MSO46, a 6-channel 4 Series MSO. It samples at 6.25 GS/s with a 12-bit ADC (up to 16-bit in High Res mode), and offers 31.25 M points record length as standard. The 4 Series MSO is a mid-range mixed signal oscilloscope with FlexChannel inputs that accept either an analog probe or an 8-bit TLP058 logic probe, a 13.3-inch HD touchscreen and Spectrum View.
Bandwidth on the 4 Series MSO is set by software option, so the MSO46 can be ordered at 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz. This listing is for the 1.5 GHz unit (option 4-BW-1500). If you need a different bandwidth, see the MSO46 overview page for all configurations.
Testwall can supply the used Tektronix MSO46 4-BW-1500, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix MSO46.
