Tektronix MSO46

Mixed signal oscilloscope, 6 FlexChannel inputs, 200 MHz to 1.5 GHz, 6.25 GS/s (4 Series MSO)
200 MHz to 1.5 GHz (by bandwidth option) Bandwidth
6 FlexChannel inputs Number of Analog Channels
Up to 48 (with TLP058 FlexChannel logic probes) Digital Channels
6.25 GS/s Sample Rate
31.25 M points standard (62.5 M optional) Record Length
Attribute Value
Bandwidth 200 MHz to 1.5 GHz (by bandwidth option)
Number of Analog Channels 6 FlexChannel inputs
Digital Channels Up to 48 (with TLP058 FlexChannel logic probes)
Sample Rate 6.25 GS/s
Record Length 31.25 M points standard (62.5 M optional)
Vertical Resolution 12-bit ADC (up to 16-bit in High Res mode)
Display 13.3-inch HD (1920 x 1080) capacitive touchscreen
Waveform Capture Rate > 500,000 waveforms per second
Series Tektronix 4 Series MSO

Available configurations

ModelBandwidthChannels
MSO46 4-BW-200200 MHz6
MSO46 4-BW-350350 MHz6
MSO46 4-BW-500500 MHz6
MSO46 4-BW-10001 GHz6
MSO46 4-BW-15001.5 GHz6
Tektronix MSO46 Options:
  • MSO46 - 4-BW-200 - 200 MHz bandwidth
  • MSO46 - 4-BW-350 - 350 MHz bandwidth
  • MSO46 - 4-BW-500 - 500 MHz bandwidth
  • MSO46 - 4-BW-1000 - 1 GHz bandwidth
  • MSO46 - 4-BW-1500 - 1.5 GHz bandwidth
  • MSO46 - 4-AFG - Arbitrary/function generator
  • MSO46 - 4-RL-1 - Record length extended to 62.5 Mpoints/channel
  • MSO46 - 4-SEC - Enhanced instrument security
  • MSO46 - 4-SRAERO - Aerospace serial trigger and analysis (MIL-STD-1553, ARINC 429)
  • MSO46 - 4-SRAUDIO - Audio serial trigger and analysis (I2S, LJ, RJ, TDM)
  • MSO46 - 4-SRAUTO - Automotive serial trigger and analysis (CAN, CAN FD, LIN, FlexRay)
  • MSO46 - 4-SRAUTOSEN - Automotive sensor serial trigger and analysis (SENT)
  • MSO46 - 4-SRCOMP - Computer serial trigger and analysis (RS-232/422/485, UART)
  • MSO46 - 4-SREMBD - Embedded serial trigger and analysis (I2C, SPI)
  • MSO46 - 4-SRENET - Ethernet serial trigger and analysis (10BASE-T, 100BASE-TX)
  • MSO46 - 4-SRPM - Power management serial trigger and analysis (SPMI)
  • MSO46 - 4-SRUSB2 - USB 2.0 serial trigger and analysis (LS, FS, HS)
  • MSO46 - 4-PWR - Advanced power measurement and analysis
  • MSO46 - 4-MTM - Mask and limit testing
  • MSO46 - 4-SV-BAS - Spectrum View frequency-domain analysis
  • MSO46 - 4-VID - NTSC, PAL and SECAM video triggering
  • MSO46 - 4-DVM - Digital voltmeter and trigger frequency counter
Calibration Form Tektronix MSO46

Repair Form Tektronix MSO46
Maximum file size: 40MB

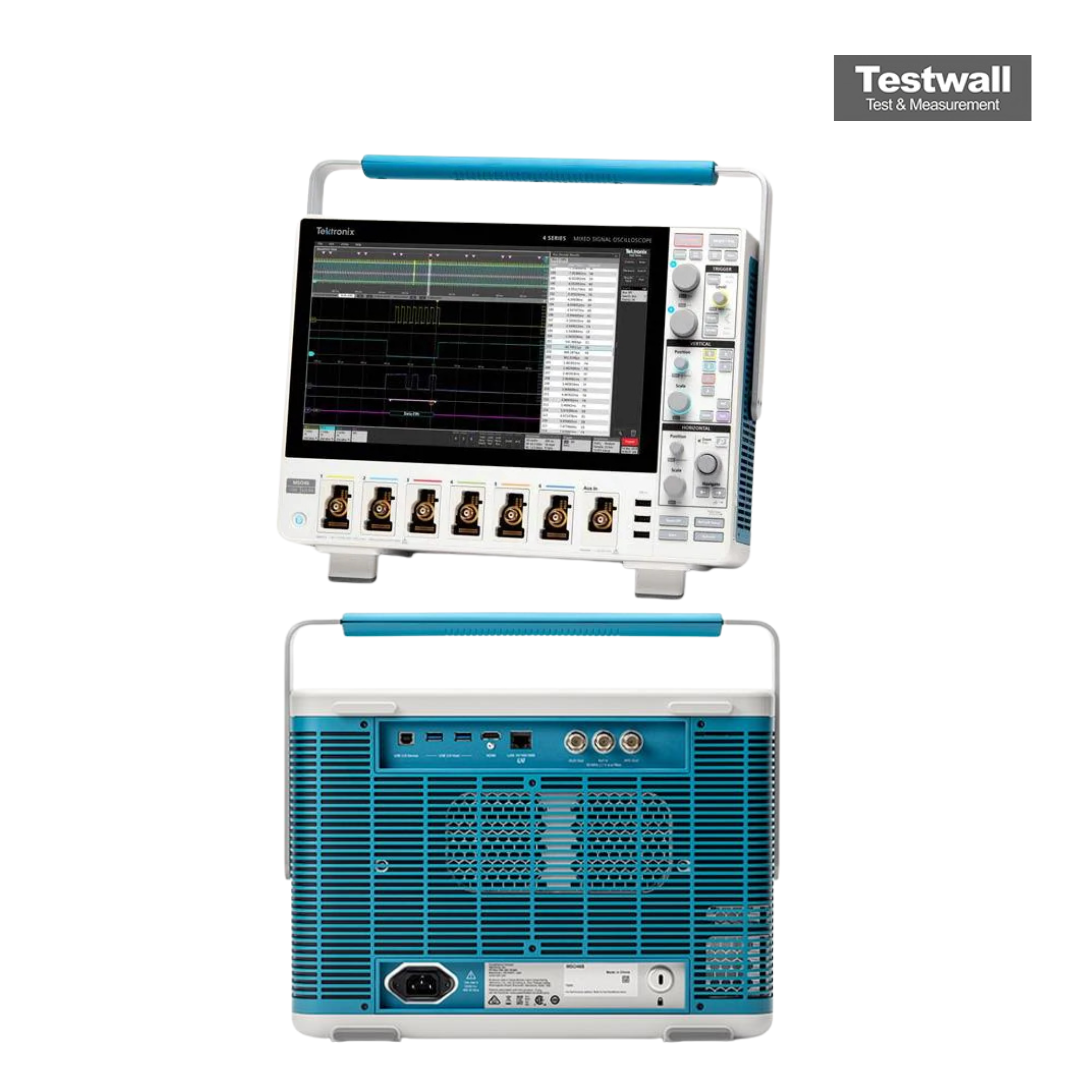

The Tektronix MSO46 is the 6-channel model in the 4 Series MSO family: a mid-range mixed signal oscilloscope with FlexChannel inputs that accept either an analog probe or an 8-bit TLP058 logic probe, a 13.3-inch HD touchscreen and Spectrum View. It samples at 6.25 GS/s with a 12-bit ADC (up to 16-bit in High Res mode).

Bandwidth is set by option, and the MSO46 is available at 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz. Each configuration has its own listing in the Available configurations table on this page.

Testwall can supply the used Tektronix MSO46, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request. Please contact us if you need calibration or repair of the Tektronix MSO46.
