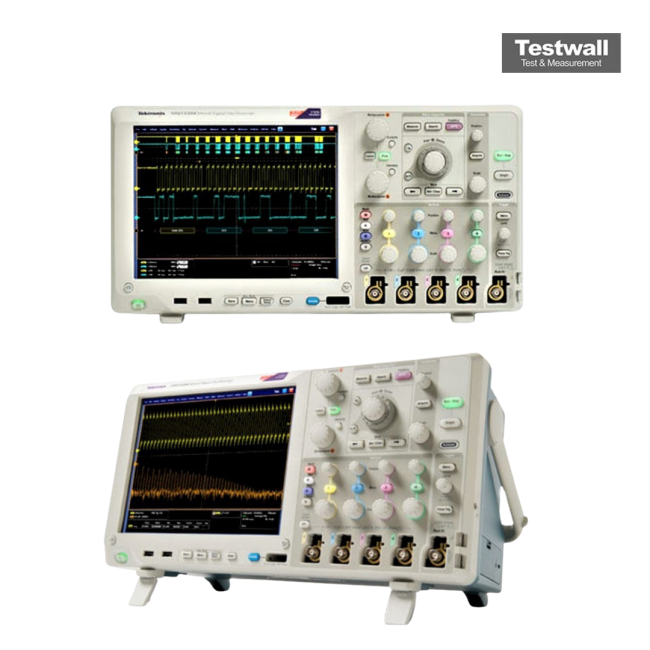

Tektronix MSO5104B

Tektronix Signal Oscilloscope Tektronix MSO5104B Signal Oscilloscope, 1 GHz, 4 + 16 ch., 10 GS/sThe Tektronix MSO5104B has exceptional signal fidelity with advanced analysis and math capabilities Designing with today's faster data rates and tighter timing margins requires an Oscilloscope with outstanding signal acquisition performance and analysis capabilities. The Tektronix MSO5104B provides exceptional signal fidelity, with 1 GHz bandwidth and 10 GS/s sample rate, along with advanced analysis and math capabilities, on your bench and in your lab. Run Windows®-based analysis software right on the Oscilloscope. Point and click Visual Triggers enable you to capture complex signals with ease. And it can be equipped to decode common serial protocols, providing a comprehensive view of your systems. Mixed signal design and analysis The Tektronix MSO5104B mixed-signal Oscilloscope provides 16 digital channels. These channels are tightly integrated into the Oscilloscope's user interface, simplifying operation and making it possible to solve mixed-signal issues easily. Accurate high-speed probing Four TPP01000 probes, included standard with every MSO5104B Oscilloscope, provide up to 1 GHz of analog bandwidth, and less than 4 pF of capacitive loading. The extremely low capacitive loading minimizes adverse effects on your circuits and is more forgiving of longer ground leads. And with the probe's wide bandwidth, you can see the high frequency components in your signal, which is critical for high-speed applications. Long record length With up to a 250 M point record length, you can capture many events of interest, even thousands of serial packets, in a single acquisition for further analysis. Unlike other Oscilloscopes in its class, the Tektronix MSO5104B provides flexible setup of both record length and sampling rate to ensure optimum resolution. Fast discovery The Tektronix MSO5104B offers the industry's most complete performance to capture and isolate events, providing fast insight into the real operation of your device. Tektronix proprietary FastAcq™ technology delivers a fast waveform capture - greater than 250,000 waveforms per second — that enables you to see glitches and other infrequent transients within seconds. Segmented memory Segmented Memory mode enables you to select up to 290,000 memory segments with a trigger capture rate of over 310,000 triggers per second. Beyond memory flexibility, segments are time stamped and can be viewed individually or as an overlay and analyzed using advanced features like protocol decoding. MagniVu™ high-speed acquisition The main digital acquisition mode on the Tektronix MSO5104B will capture up to 40 M points at 500 MS/s (2 ns resolution).In addition to the main record, the Tektronix MSO5000B provides an ultra high-resolution record called MagniVu which acquires 10,000 points at up to 16.5 GS/s (60.6 ps resolution). Both the main and MagniVu waveforms are acquired on every trigger and either can be displayed at any time, running or stopped. Navigation and search The MSO5104B offers the industry's most comprehensive search and waveform navigation with its innovative Wave Inspector® controls. These controls speed panning and zooming through your record. With a unique force-feedback system, you can move from one end of your record to the other in just seconds. Visual Trigger and Search makes the identification of the desired waveform events quick and easy by scanning through all waveform acquisitions and comparing them to on-screen areas (geometric shapes). Areas can be created using a variety of shapes including triangles, rectangles, hexagons, trapezoids, and user specified shapes.Features of Tektronix MSO5104B includes:

Wave Inspector® navigation with Advanced Search and Mark

Parallel and serial bus triggering and decode

Long record length (standard record length of 25M/channel, optional up to 125M points/channel)

Standard high-impedance, low-capacitance 500 MHz passive voltage probes

FastAcq maximum waveform capture rate of >250m000 waveforms per second

FastFrame segmented memory acquisition

Optional analysis for jitter and eye diagram measurements, serial compliance test, power measurements, limit test, mask test, and DDR memory bus analysis Includes: One Passive Voltage Probe per Analog Channel (TPP1000 1 GHz, 10X, 3.9pF), front cover, touchscreen stylus, user's manual, accessory pouch, mouse, calibration certificate documenting measurement traceability to National Metrology Institute(s), Z 540-1 compliance and ISO9001.

Specifications of the Tektronix MSO5104B includes:

1 GHz, 4+16 channels

Up to 10 GS/s real-time sample rate on one or two channels; up to 5 GS/s on all four channels

Up to 250 megapoint record length with MultiView zoom™

>250,000 wfms/s max. waveform capture rate with FastAcq™ acquisition

>11 bits vertical resolution using HiRes sampling

FastFrame™ segmented memory acquisition mode with up to 290,000 segments and >310,000 waveforms per second capture rate

Standard 10 MΩ passive voltage probes with less than 4 pF capacitive loading and 1 GHz analog bandwidth

Standard removable hard disk drive (≥480 GB)

Optional Serial Triggering and Technology Specific Analysis

User-selectable bandwidth limit and DSP filters for lower noise and better measurement accuracy

Microsoft® Windows 7 64-bit Operating System

USB, LAN (LXI-C)
