Tektronix

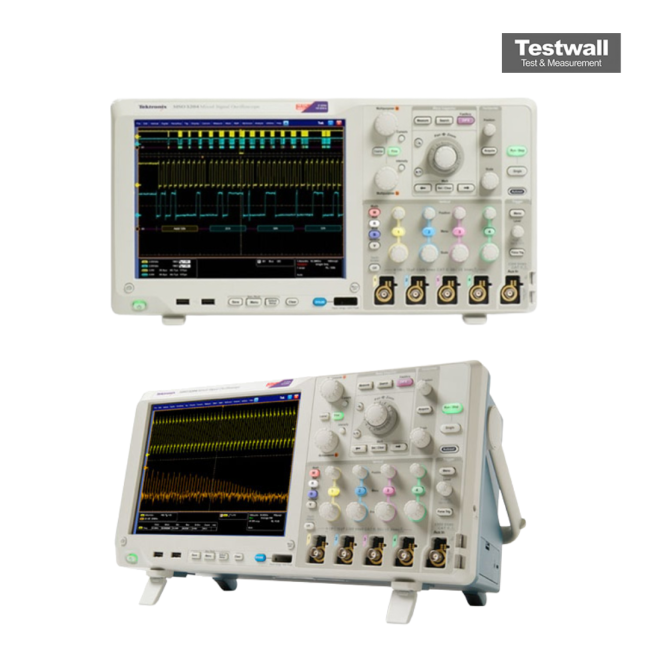

Tektronix MSO5054B
Mixed Signal Oscilloscope, 500 MHz 4 + 16 ch., 5 GS/s
500 MHz Bandwidth
4 Number of Analog Channels
16 Number of Digital Channels
2.5 GS/s (all channels simultaneously) Sample Rate
25 M points standard (250 M points optional) Record Length
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 |
| Sample Rate | 2.5 GS/s (all channels simultaneously) |
| Record Length | 25 M points standard (250 M points optional) |
| Vertical Resolution | 8-bit (11-bit with Hi Res mode) |
| Rise Time | 700 ps |
| Display | 10.4-inch (264 mm) color TFT LCD display with 1024 x 768 resolution |
| Waveform Capture Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional), RS-232 (optional) |
Tektronix MSO5054B Options:
- MSO5054B - Opt. 5RL - Record Length: 125 M max, 50 M/Ch
- MSO5054B - Opt. 10RL - Record Length: 250 M max, 125 M/Ch
- MSO5054B - Opt. BRR - BroadR-Reach Compliance Testing (Requires TF-GBE-BTP or TF-GBE-ATP Ethernet Test Fixture)
- MSO5054B - Opt. DDRA - DDR Memory bus analysis (Requires Opt. DJA) (Available on 1 GHz and 2 GHz models only)
- MSO5054B - Opt. DJA - Jitter and Eye Analysis Tools – Advanced (DPOJET)
- MSO5054B - Opt. DJAN - DPOJET Noise, jitter, and eye analysis tools (Requires Opt. DJA)
- MSO5054B - Opt. ET3 - Ethernet compliance test (Requires TF-GBE-BTP or TF-GBE-ATP Ethernet Test Fixture)
- MSO5054B - Opt. MOST - MOST Essentials – Electrical compliance and debug test solution for MOST50 and MOST150 (Requires Opt. DJA)
- MSO5054B - Opt. MTM - Mask testing
- MSO5054B - Opt. PWR - Power measurement and analysis
- MSO5054B - Opt. SR-AERO - Aerospace serial triggering and analysis (MIL-STD-1553)
- MSO5054B - Opt. SR-AUTO - Automotive serial triggering and analysis (CAN/LIN/FlexRay)
- MSO5054B - Opt. SR-COMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO5054B - Opt. SR-DPHY - MIPI D-PHY serial analysis
- MSO5054B - Opt. SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO5054B - Opt. SR-ENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO5054B - Opt. SR-USB - USB 2.0 serial triggering and analysis (LS, FS, HS)
- MSO5054B - Opt. SVA - AM/FM/PM Audio Signal Analysis (Requires Opt. SVE)
- MSO5054B - Opt. SVE - SignalVu Essentials – Vector signal analysis software
- MSO5054B - Opt. SVM - SignalVu General Purpose Modulation Analysis (Requires Opt. SVE)
- MSO5054B - Opt. SVP - SignalVu Advanced Signal Analysis including pulse measurements (Requires Opt. SVE)
- MSO5054B - Opt. SVT - SignalVu Frequency and Phase Settling Time Measurements (Requires Opt. SVE)
- MSO5054B - Opt. SV26 - SignalVu APCO P25 measurements (Requires Opt. SVE)
- MSO5054B - Opt. USB2 - USB 2.0 Automated Compliance Test Application (Requires TDSUSBF USB Test Fixture)
- MSO5054B - Opt. USBPWR - Automated compliance test solution for USB power adapters
- MSO5054B - Opt. PS2 - Power Solution Bundle: DPOPWR, THDP0200, TCP0030A, 067-1686-xx Deskew fixture
- MSO5054B - Opt. PS3 - Power Solution Bundle: DPOPWR, TMDP0200, TCP0020, 067-1686-xx Deskew fixture
- MSO5054B - Opt. C3 - Calibration Service 3 Years
- MSO5054B - Opt. C5 - Calibration Service 5 Years
- MSO5054B - Opt. D1 - Calibration Data Report
- MSO5054B - Opt. D3 - Calibration Data Report 3 Years (with Opt. C3)
- MSO5054B - Opt. D5 - Calibration Data Report 5 Years (with Opt. C5)
- MSO5054B - Opt. G3 - Complete Care 3 Years (includes loaner, scheduled calibration, and more)
- MSO5054B - Opt. G5 - Complete Care 5 Years (includes loaner, scheduled calibration, and more)
- MSO5054B - Opt. R3 - Repair Service 3 Years (including warranty)
- MSO5054B - Opt. R5 - Repair Service 5 Years (including warranty)
- MSO5054B - Opt. A0 - North America power plug (115 V, 60 Hz)
- MSO5054B - Opt. A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO5054B - Opt. A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO5054B - Opt. A3 - Australia power plug (240 V, 50 Hz)
- MSO5054B - Opt. A5 - Switzerland power plug (220 V, 50 Hz)
- MSO5054B - Opt. A6 - Japan power plug (100 V, 50/60 Hz)
- MSO5054B - Opt. A10 - China power plug (50 Hz)
- MSO5054B - Opt. A11 - India power plug (50 Hz)
- MSO5054B - Opt. A12 - Brazil power plug (60 Hz)
- MSO5054B - Opt. A99 - No power cord
- MSO5054B - Opt. L0 - English manual
- MSO5054B - Opt. L1 - French manual
- MSO5054B - Opt. L3 - German manual
- MSO5054B - Opt. L5 - Japanese manual
- MSO5054B - Opt. L7 - Simplified Chinese manual
- MSO5054B - Opt. L8 - Traditional Chinese manual
- MSO5054B - Opt. L9 - Korean manual
- MSO5054B - Opt. L10 - Russian manual
The Tektronix MSO5054B Mixed Signal Oscilloscope offers 500 MHz bandwidth and 5 GS/s sample rate with 4 analog and 16 digital channels for advanced signal fidelity and detailed system analysis. It includes a 125M point record length, Wave Inspector® controls, FastAcq™ waveform capture rate over 250,000 wfms/s, and Visual Triggering for fast debugging. The included TPP0500 probes provide up to 500 MHz bandwidth with low loading.
It supports segmented memory, MagniVu™ acquisition at up to 16.5 GS/s, and serial protocol decoding. Optional jitter, mask, and DDR analysis ensure versatile application coverage.
Testwall can supply the used Tektronix MSO5054B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO5054B.
