Tektronix MSO54-BW1000
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 6.25 GS/s |
| Record Length | 31.25 M points |
| Digital Channels | 16 (via TLP058 logic probe) |
| Vertical Resolution | 12-bit ADC |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Connectivity | USB 3.0, USB 2.0, DisplayPort, LAN (LXI), HDMI |
| Operating System | Windows 10 |
| Model | MSO54-BW1000 |
|---|

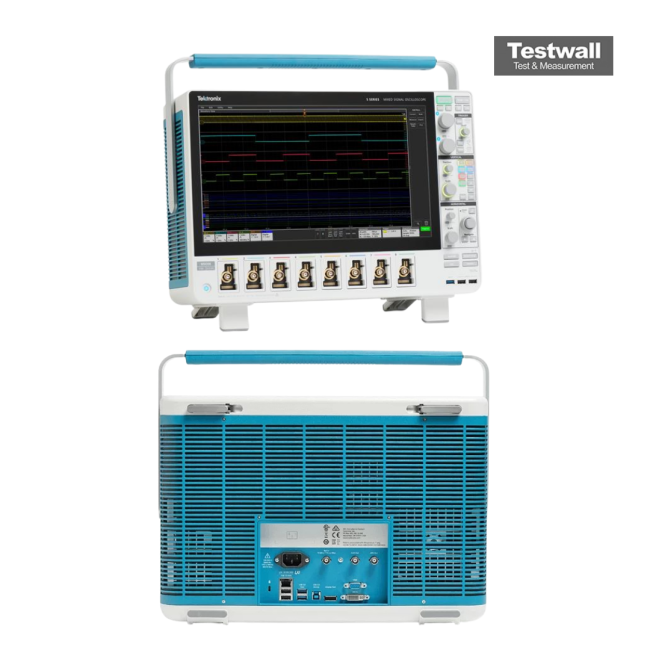

The Tektronix MSO54 5-BW-1000 Mixed Signal Oscilloscope features 1 GHz bandwidth and 4 Flex Channels, each supporting one analog or eight digital inputs with an optional TLP058 logic probe. It delivers a 6.25 GS/s real-time sample rate across all channels and a 62.5Mpoints record length, expandable with options. The large 15.6-inch HD display (1920x1080) enhances visibility in complex embedded systems and power electronics testing.
Ideal for applications in automotive electronics, power supply design, and embedded systems, the MSO54 allows precise analysis and debugging of multi-signal environments with advanced signal capture and review capabilities.
Testwall can supply the used Tektronix MSO54 5-BW-1000, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO54 5-BW-1000.
