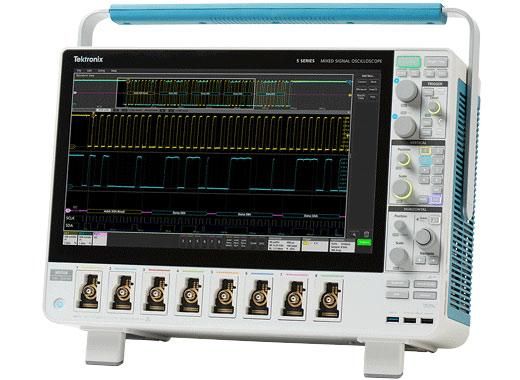

Tektronix MSO58 5-BW-350
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz (option 5-BW-350) |
| Number of Analog Channels | 8 FlexChannel inputs |
| Digital Channels | Up to 64 (with TLP058 FlexChannel logic probes) |
| Sample Rate | 6.25 GS/s |
| Record Length | 62.5 M points standard (up to 500 M optional) |
| Vertical Resolution | 12-bit ADC (up to 16-bit in High Res mode) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | > 500,000 waveforms per second |
| Series | Tektronix 5 Series MSO |
The Tektronix MSO58 5-BW-350 is the 350 MHz bandwidth configuration of the MSO58, a 8-channel 5 Series MSO. It samples at 6.25 GS/s with a 12-bit ADC (up to 16-bit in High Res mode), and offers 62.5 M points record length as standard. The 5 Series MSO is a high-channel-count mixed signal oscilloscope with FlexChannel inputs, a 15.6-inch HD touchscreen and optional Windows 10 operating system.
Bandwidth on the 5 Series MSO is set by software option, so the MSO58 can be ordered at 350 MHz, 500 MHz, 1 GHz, 2 GHz. This listing is for the 350 MHz unit (option 5-BW-350). If you need a different bandwidth, see the MSO58 overview page for all configurations.
Testwall can supply the used Tektronix MSO58 5-BW-350, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Tektronix MSO58.
