Keysight (Agilent)

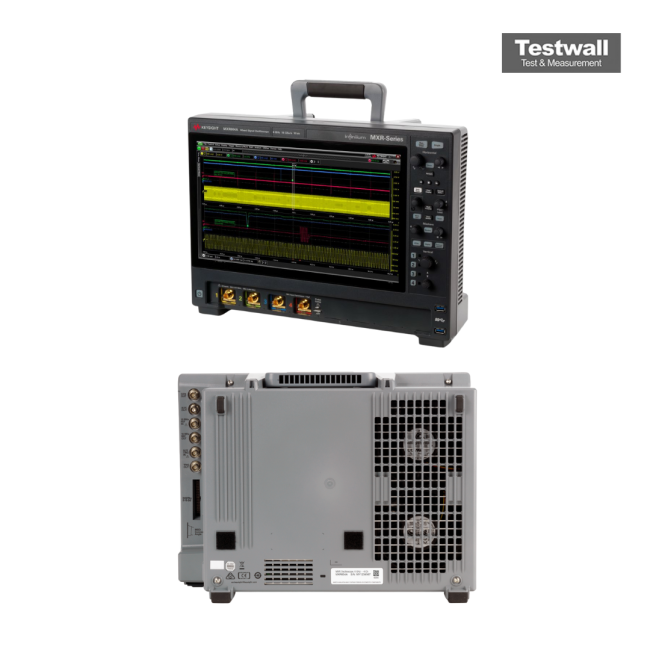

Keysight (Agilent) MXR604A
6GHz 4 Channel 16GS/s Digital Oscilloscope
600 MHz Bandwidth
4 Analog Channels Number of Channels
Up to 16 GSa/s Sample Rate
Up to 800 Mpts (standard 100 Mpts) Memory Depth
8-bit (up to 12-bit in high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 600 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | Up to 16 GSa/s |
| Memory Depth | Up to 800 Mpts (standard 100 Mpts) |
| Vertical Resolution | 8-bit (up to 12-bit in high-resolution mode) |
| Display | 15.6-inch capacitive touchscreen, 1920 x 1080 resolution |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Input Impedance | 50 Ω or 1 MΩ |
| Time Base Range | 200 ps/div to 500 s/div |
| Connectivity | USB, LAN (LXI), HDMI, USB-C, PCIe |
| Model | MXR604A |
|---|
Keysight (Agilent) MXR604A 6GHz 4 Channel 16GS/s Digital Oscilloscope Description: 6 GHz Bandwidth 4 Analog Channels 16 Digital Channels Vertical Resolution: 10 bits (up to 16 Bits with high resolution) 16 GSa/s Maximum Sample Rate 200 Mpts/channel of Standard Memory Integrated 4-digit DVM & 10-digit counter The Keysight MXR604A is a 4 Channel 6GHz Analog Bandwidth Infiniium MXR-Series oscilloscope with a maximum sample rate of 16GSa/s. The MXR604A features a 15.6闁艰鲸绮忛崜楣冩 full HD touch screen display with dual screen support. The Infiniium MXR-Series offers up to 6 GHz bandwidth and 16 GSa/s sample rate on each channel (four and eight channel versions are available). An integrated 4 digit DVM and 10 digit counter are installed as standard. Retrofittable options are available to extend the capabilites of the MXR604A even further, including: - Increase analog channels to 8 - Add 1.6Gpts / channel 闁艰鲸绮忛崜鍓ф尒鐎涘窅exible闁艰鲸绮忛崜鐐▕ Memory - Add Real Time Spectrum Analyzer - Extend RF Frequency to 6GHz - Add 50MHz Waveform Generator - Add 16 Digital Channels
