Tektronix
Tektronix MSO58-BW500
4+ up to 32-CH, DIGITAL, 1GHz Mixed Signal Oscilloscope
500 MHz Bandwidth
8 Number of Analog Channels
6.25 GS/s on all channels simultaneously Sample Rate
62.5 M points standard on all channels Record Length
8 FlexChannel inputs, each supporting 1 analog or 8 digital channels (up to 64 digital channels total) Digital Channels
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Analog Channels | 8 |
| Sample Rate | 6.25 GS/s on all channels simultaneously |
| Record Length | 62.5 M points standard on all channels |
| Digital Channels | 8 FlexChannel inputs, each supporting 1 analog or 8 digital channels (up to 64 digital channels total) |
| Vertical Resolution | 12-bit ADC (16-bit with High Res mode) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | 500,000 waveforms per second |
| Connectivity | USB 3.0, USB 2.0, DisplayPort, LAN (1000BASE-T), optional Wi-Fi |
| Spectrum Analyzer | Integrated hardware-based spectrum analyzer with RF vs. time measurements |
| Model | MSO58-BW500 |
|---|

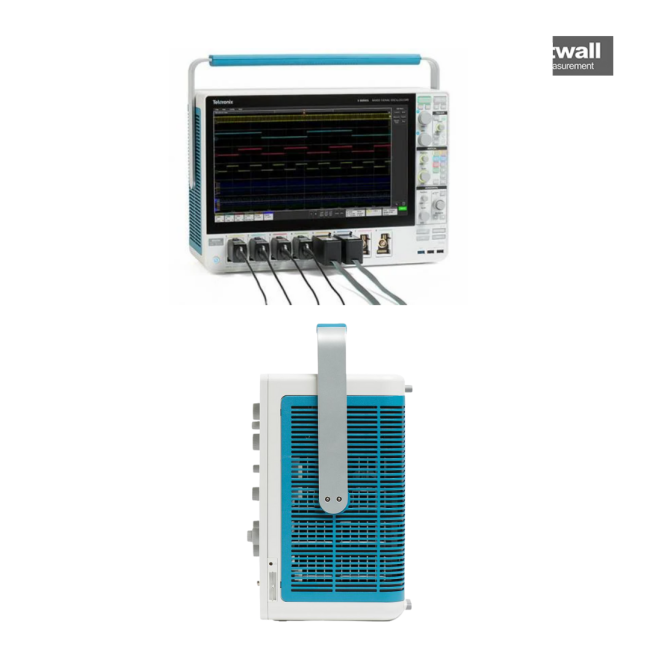

The Tektronix MSO58 5-BW-500 offers 500 MHz bandwidth and 8 Flex Channels, each supporting one analog or eight digital logic inputs via the optional TLP058 logic probe.
It delivers a 6.25 GS/s real-time sampling rate across all channels and a 62.5Mpoint record length, expandable via option for extensive data analysis.
Testwall can supply the used Tektronix MSO58 5-BW-500, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO58 5-BW-500
