Tektronix MSO58LP
| Attribute | Value |
|---|---|
| Number of Channels | 8 analog channels |
| Bandwidth | 500 MHz |
| Sample Rate | 6.25 GS/s on all channels simultaneously |
| Record Length | 62.5 M points standard on all channels |
| Vertical Resolution | 12-bit ADC (16-bit with High Res mode) |
| Digital Channels | 8 FlexChannel inputs, each supporting 1 analog or 8 digital channels (up to 64 digital channels total) |
| Display | 15.6-inch HD (1920 x 1080) capacitive touchscreen |
| Waveform Capture Rate | Up to 500,000 waveforms per second |
| Connectivity | USB 3.0, USB 2.0, DisplayPort, LAN (1000BASE-T), optional Wi-Fi |
| Form Factor | Low-profile (LP) design, 4U rack-mountable instrument |
Tektronix MSO58LP Options:
- MSO58LP - 5-AFG - Add Arbitrary / Function Generator
- MSO58LP - 5-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO58LP - 5-SRAERO - Aerospace serial bus triggering, decode and analysis (MIL-STD-1553, ARINC 429)
- MSO58LP - 5-SRAUDIO - Audio serial bus triggering, decode and analysis (I2S, LJ, RJ, TDM)
- MSO58LP - 5-SRAUTO - Automotive serial bus triggering, decode and analysis (CAN, CAN FD, LIN, FlexRay)
- MSO58LP - 5-SRAUTOSEN - Automotive sensor serial bus triggering, decode and analysis (SENT)
- MSO58LP - 5-SRCOMP - Computer serial bus triggering, decode and analysis (RS-232/422/485/UART)
- MSO58LP - 5-SREMBD - Embedded serial bus triggering, decode and analysis (I2C, SPI)
- MSO58LP - 5-SRENET - Ethernet serial bus triggering, decode and analysis (10BASE-T, 100BASE-TX)
- MSO58LP - 5-SRPM - Power Management serial bus triggering, decode and analysis (SPMI)
- MSO58LP - 5-SRUSB2 - USB serial bus triggering, decode and analysis (USB2.0 LS, FS, HS)
- MSO58LP - 5-DJA - Advanced Jitter and Eye Analysis
- MSO58LP - 5-PWR - Power Measurement and Analysis
- MSO58LP - 5-PS2 - Power Solution Bundle (5-PWR, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO58LP - A0 - North America power plug (115 V, 60 Hz)
- MSO58LP - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO58LP - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO58LP - A3 - Australia power plug (240 V, 50 Hz)
- MSO58LP - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO58LP - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO58LP - A10 - China power plug (50 Hz)
- MSO58LP - A11 - India power plug (50 Hz)
- MSO58LP - A12 - Brazil power plug (60 Hz)
- MSO58LP - A99 - No power cord
- MSO58LP - R5 - Standard Warranty Extended to 5 Years
- MSO58LP - C3 - Calibration Service 3 Years
- MSO58LP - C5 - Calibration Service 5 Years
- MSO58LP - D1 - Calibration Data Report
- MSO58LP - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO58LP - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO58LP |
|---|

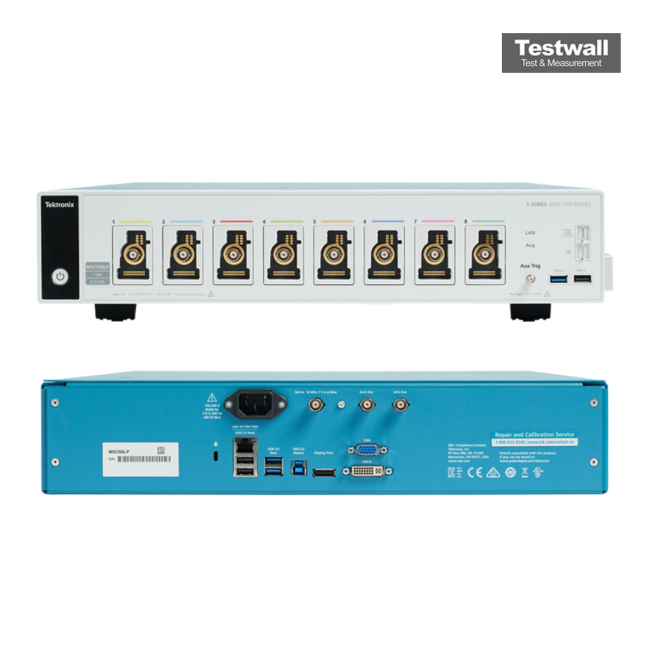

The Tektronix MSO58LP is a low-profile version of the 5 Series MSO with 8 FlexChannels, each supporting one analog signal or 8 digital inputs via TLP058 probes. Offers 6.25 GS/s real-time sample rate, 125 Mpoints standard memory, and >500,000 wfms/s capture rate. Supports waveform, spectral, or both views per input.
Includes advanced measurement tools, optional AFG, and full user control with external touch monitors, replicating the benchtop UI experience in a rack-friendly design.
Testwall can supply the used Tektronix MSO58LP, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO58LP.
