Tektronix MSO46 4-BW-350 4 Series MSO
| Attribute | Value |
|---|---|
| Bandwidth | 350 MHz |
| Number of Analog Channels | 4 |
| Digital Channels | Up to 48 digital channels (with TLP058 FlexChannel probes) |
| Sample Rate | 6.25 GS/s on all channels simultaneously |
| Record Length | 31.25 M points standard on all channels |
| Display | 13.3-inch HD (1920 x 1080) capacitive touchscreen |
| Vertical Resolution | 12-bit ADC (16-bit with High Res mode) |
| Input Impedance | 1 MΩ and 50 Ω (software selectable) |
| Waveform Capture Rate | 500,000 waveforms per second |
| Integrated Instruments | Oscilloscope, Logic Analyzer, Protocol Analyzer, Arbitrary Function Generator, Digital Voltmeter, Frequency Counter |
Tektronix MSO46 4-BW-350 4 Series MSO Options:
- MSO46 - 4-BW-200 - Bandwidth 200 MHz
- MSO46 - 4-BW-350 - Bandwidth 350 MHz
- MSO46 - 4-BW-500 - Bandwidth 500 MHz
- MSO46 - 4-BW-1000 - Bandwidth 1 GHz
- MSO46 - 4-BW-1500 - Bandwidth 1.5 GHz
- MSO46 - 4-RL-1 - Extend record length from 31.25 Mpoints/channel to 62.5 Mpoints/channel
- MSO46 - 4-AFG - Add Arbitrary / Function Generator
- MSO46 - 4-SEC - Add enhanced security for instrument declassification and password protected enabling and disabling of all USB and Ethernet ports and firmware upgrade
- MSO46 - 4-SRAERO - Aerospace serial triggering and analysis (MIL-STD-1553, ARINC 429)
- MSO46 - 4-SRAUDIO - Audio serial triggering and analysis (I2S, LJ, RJ, TDM)
- MSO46 - 4-SRAUTO - Automotive serial triggering and analysis (CAN, CAN FD, LIN, FlexRay, and CAN symbolic decoding)
- MSO46 - 4-SRAUTOSEN - Automotive sensor serial triggering and analysis (SENT)
- MSO46 - 4-SRCOMP - Computer serial triggering and analysis (RS-232/422/485/UART)
- MSO46 - 4-SREMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO46 - 4-SRENET - Ethernet serial triggering and analysis (10BASE-T, 100BASE-TX)
- MSO46 - 4-SRI3C - MIPI I3C serial analysis (I3C decode and search only)
- MSO46 - 4-SRPM - Power Management serial triggering and analysis (SPMI)
- MSO46 - 4-SRUSB2 - USB serial bus triggering and analysis (USB2.0 LS, FS, HS)
- MSO46 - 4-PWR-BAS - Power Measurements and Analysis
- MSO46 - 4-SV-BAS - Spectrum View frequency domain analysis
- MSO46 - 4-PS2 - Power Solution Bundle (4-PWR-BAS, THDP0200, TCP0030A, 067-1686-xx deskew fixture)
- MSO46 - A0 - North America power plug (115 V, 60 Hz)
- MSO46 - A1 - Universal Euro power plug (220 V, 50 Hz)
- MSO46 - A2 - United Kingdom power plug (240 V, 50 Hz)
- MSO46 - A3 - Australia power plug (240 V, 50 Hz)
- MSO46 - A5 - Switzerland power plug (220 V, 50 Hz)
- MSO46 - A6 - Japan power plug (100 V, 50/60 Hz)
- MSO46 - A10 - China power plug (50 Hz)
- MSO46 - A11 - India power plug (50 Hz)
- MSO46 - A12 - Brazil power plug (60 Hz)
- MSO46 - A99 - No power cord
- MSO46 - T3 - Three Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO46 - T5 - Five Year Total Protection Plan, includes repair or replacement coverage from wear and tear, accidental damage, ESD or EOS
- MSO46 - R5 - Standard Warranty Extended to 5 Years
- MSO46 - C3 - Calibration service 3 Years
- MSO46 - C5 - Calibration service 5 Years
- MSO46 - D1 - Calibration Data Report
- MSO46 - D3 - Calibration Data Report 3 Years (with Option C3)
- MSO46 - D5 - Calibration Data Report 5 Years (with Option C5)
| Model | MSO46 |
|---|

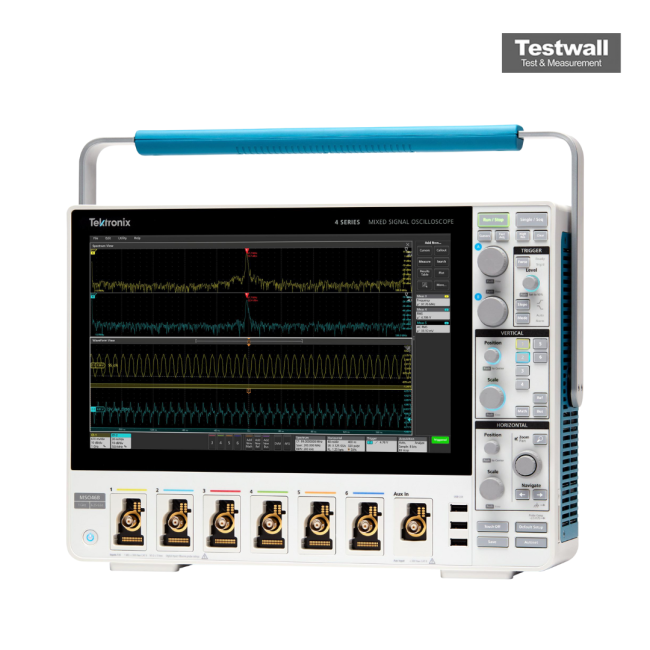

The Tektronix MSO46B/4-BW-350 features 6 analog and 48 digital channels (TLP058 required), 350 MHz bandwidth, and a sampling rate of 6.25 GS/s. The 13.3-inch Full HD touchscreen supports gesture control and provides 12-bit resolution, up to 16-bit in High-Res mode. USB2/3, Ethernet, and high waveform capture rate ensure modern connectivity and speed.
With FlexChannel technology, FastFrame mode, and built-in math and search tools, this scope is ideal for debugging embedded systems and performing detailed analysis across multiple signals. Record length up to 62.5 Mpoints (optional).
Testwall can supply the used Tektronix MSO46B/4-BW-350, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO46B/4-BW-350.
