Tektronix MSO70804
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Analog Input Channels | 4 |
| Digital Input Channels | 16 |
| Sample Rate | 25 GS/s on all channels simultaneously |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 53.4 ps |
| Waveform Capture Rate | Up to 300,000 waveforms/second |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 12.1-inch TFT color LCD with 1024 x 768 resolution |
| Model | MSO70804 |
|---|

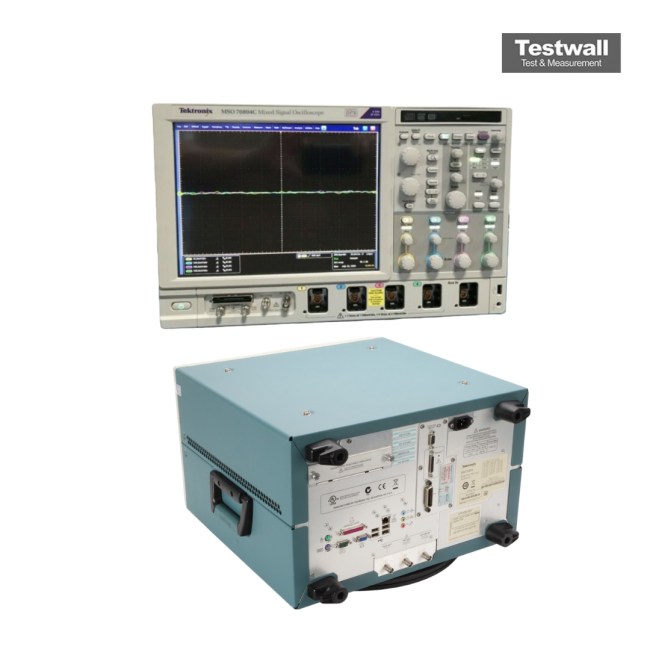

The Tektronix MSO70804 is a mixed‑signal DSO combining 4 analog channels with 16 digital inputs. It delivers 8 GHz analog bandwidth and up to 25 GS/s real‑time sampling, enabling precise visibility of fast transitions and timing relationships. The mixed‑signal architecture lets users view synchronized analog waveforms and logic states in a single acquisition to verify behavior at full bandwidth.
Use it to observe high‑speed events up to 8 GHz while correlating 4‑channel analog measurements with 16‑channel digital activity. The 25 GS/s rate supports fine timing insight for design validation and troubleshooting.
Testwall can supply the used Tektronix MSO70804, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO70804.
