Tektronix MSO70804C
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Number of Analog Channels | 4 |
| Sample Rate | 25 GS/s on all channels simultaneously |
| Record Length | Up to 250 Mpoints |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Digital Channels | 16 digital channels (MSO) |
| Rise Time | 46.7 ps (typical) |
| Waveform Capture Rate | Up to 300,000 waveforms per second |
| Input Impedance | 50 Ω and 1 MΩ |
| Operating System | Windows 7 (64-bit) |
Tektronix MSO70804C Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO70804C - 2XL - Extended record length
- MSO70804C - 5XL - Extended record length
- MSO70804C - 10XL - Extended record length
- MSO70804C - 20XL - Extended record length
- MSO70804C - 50XL - Extended record length
- MSO70804C - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- MSO70804C - DJAN - DPOJET jitter and noise analysis
- MSO70804C - SDLA64 - Serial data link analysis (equalization, de-embedding)
- MSO70804C - DDRA - DDR memory bus analysis
- MSO70804C - ST6G - 6.25 Gb/s serial pattern trigger
- MSO70804C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MSO70804C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO70804C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO70804C - SR-USB - USB 2.0 serial triggering and analysis
- MSO70804C - SR-PCIE - PCI Express serial analysis
- MSO70804C - SR-810B - 8b/10b serial analysis
- MSO70804C - MTH - Mask testing
- MSO70804C - LT - Limit testing
- MSO70804C - VET - Visual trigger
- MSO70804C - ASM - Advanced search and mark

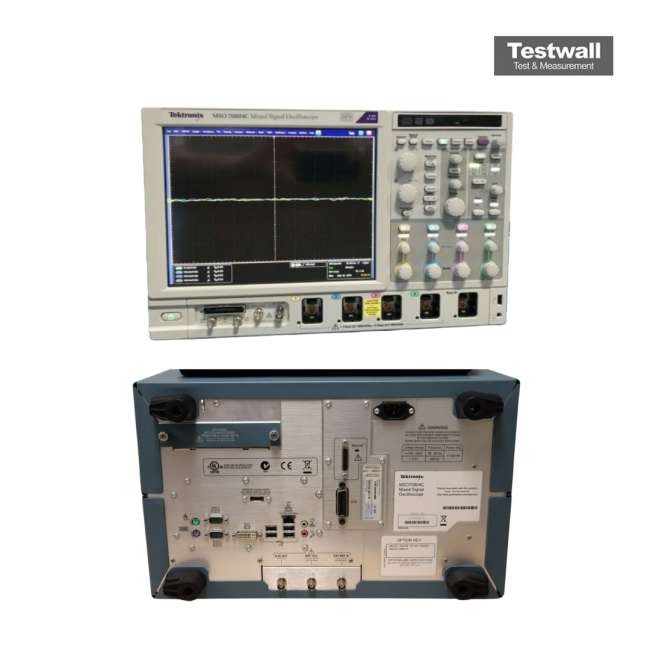

The Tektronix MSO70804C Mixed Signal Oscilloscope offers 4 analog and 16 logic channels with a bandwidth of 8 GHz and a sampling rate of 25 GS/s, making it ideal for high-speed signal analysis. With 62 MS of standard memory, it ensures precise waveform capture across complex electronic systems.
This oscilloscope supports engineers from prototype design to production with powerful signal acquisition and analysis capabilities tailored for demanding development environments.
Testwall can supply the used Tektronix MSO70804C Mixed Signal Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO70804C Mixed Signal Oscilloscope.
