Tektronix TDS7254B
| Attribute | Value |
|---|---|
| Bandwidth | 2.5 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GS/s (single channel), 10 GS/s (two channels), 5 GS/s (four channels) |
| Record Length | Up to 16 million points per channel |
| Vertical Resolution | 8 bits (up to 11 bits with averaging) |
| Rise Time | ≤ 175 ps |
| Input Impedance | 50 Ω or 1 MΩ (switchable) |
| Display | 10.4-inch color LCD (1024 x 768 resolution) |
| Operating System | Windows XP Embedded |
| Connectivity | USB, GPIB, Ethernet (10/100Base-T), CD-RW drive |
Tektronix TDS7254B Options:
Options available for the Tektronix TDS5000 / TDS6000 / TDS7000 / CSA7000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- TDS7254B - 2M - Extended record length
- TDS7254B - 3M - Extended record length
- TDS7254B - SM - Serial communication mask testing
- TDS7254B - JT3 - TDSJIT3 jitter and timing analysis
- TDS7254B - PWR - TDSPWR3 power measurement and analysis
- TDS7254B - USB - TDSUSB2 USB 2.0 compliance testing
- TDS7254B - ET3 - TDSET3 Ethernet compliance testing
- TDS7254B - 1K - Instrument cart
- TDS7254B - 1R - Rack mount kit

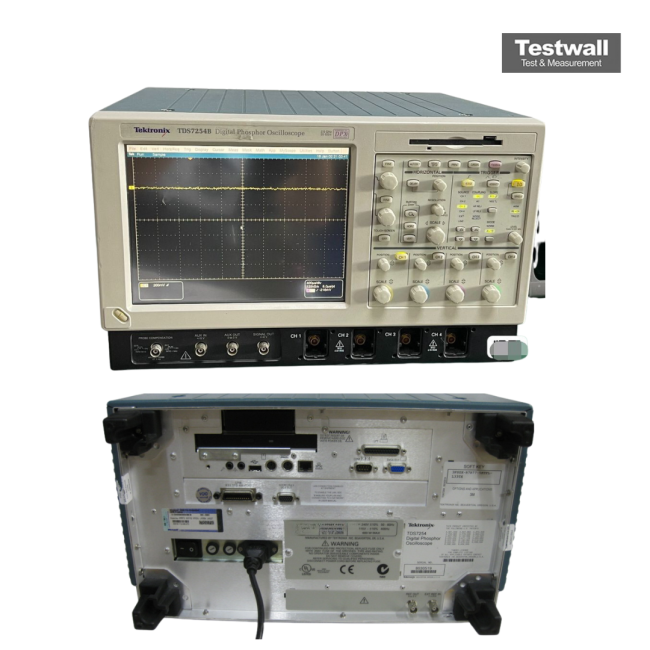

The Tektronix TDS7254B DPO Digital Oscilloscope offers 4 channels at 2.5 GHz bandwidth and 20 Gs/s max sample rate. With 1 MB to 64 MB memory depth (optional), 50 ps time resolution, and >400,000 wfms/s capture rate using DPX® technology, it ensures ultra-precise signal integrity. Features include a 10.4″ color TFT display, 130 ps rise time, communications mask testing up to 4.25 Gb/s, TekConnect® interface, and GP-IB remote control.
Ideal for high-speed communication and electronic signal diagnostics, it supports advanced testing with unmatched precision and responsiveness.
Testwall can supply the used Tektronix TDS7254B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS7254B.
