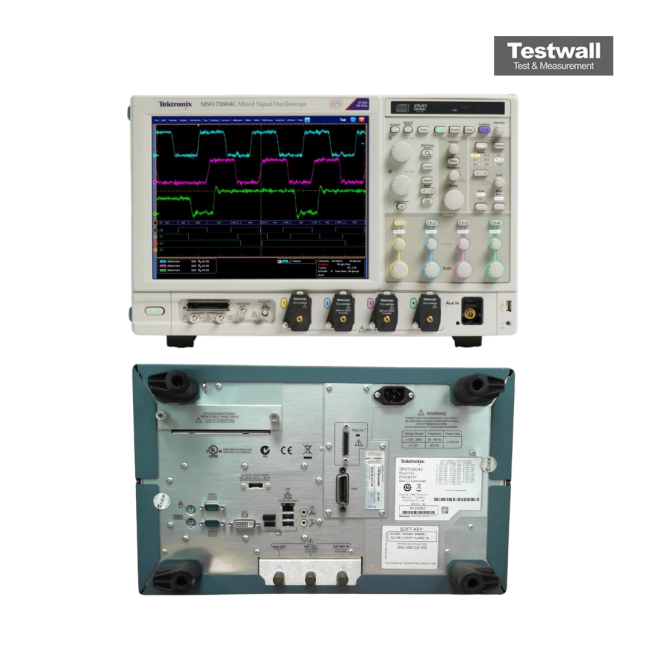

Tektronix MSO72004C
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz |
| Sample Rate | 50 GS/s on all channels simultaneously |
| Number of Analog Channels | 4 |
| Number of Digital Channels | 16 (via MSO option) |
| Record Length | Up to 250 Megapoints per channel |
| Vertical Resolution | 8-bit (up to 11-bit with Hi-Res mode) |
| Rise Time | 17.5 ps (typical) |
| Time Base Accuracy | ±1 ppm initial accuracy |
| Display | 15.3-inch XGA color display (1024 x 768 resolution) |
| Operating System | Windows 7 Professional (64-bit) |
Tektronix MSO72004C Options:
Options available for the Tektronix DPO/DSA/MSO70000 Series. Installed options vary from unit to unit – ask us for the exact configuration of the instrument you are interested in.
- MSO72004C - 2XL - Extended record length
- MSO72004C - 5XL - Extended record length
- MSO72004C - 10XL - Extended record length
- MSO72004C - 20XL - Extended record length
- MSO72004C - 50XL - Extended record length
- MSO72004C - DJA - DPOJET advanced jitter and eye diagram analysis (standard on DSA models)
- MSO72004C - DJAN - DPOJET jitter and noise analysis
- MSO72004C - SDLA64 - Serial data link analysis (equalization, de-embedding)
- MSO72004C - DDRA - DDR memory bus analysis
- MSO72004C - ST6G - 6.25 Gb/s serial pattern trigger
- MSO72004C - SR-AUTO - Automotive serial triggering and analysis (CAN, LIN, FlexRay)
- MSO72004C - SR-COMP - Computer serial triggering and analysis (RS-232/422/485, UART)
- MSO72004C - SR-EMBD - Embedded serial triggering and analysis (I2C, SPI)
- MSO72004C - SR-USB - USB 2.0 serial triggering and analysis
- MSO72004C - SR-PCIE - PCI Express serial analysis
- MSO72004C - SR-810B - 8b/10b serial analysis
- MSO72004C - MTH - Mask testing
- MSO72004C - LT - Limit testing
- MSO72004C - VET - Visual trigger
- MSO72004C - ASM - Advanced search and mark
The Tektronix MSO72004C Signal Oscilloscope offers high-performance signal acquisition with 20 GHz analog bandwidth and 100 GS/s sample rate, across 4 analog and 16 digital channels. With a rise time as low as 14 ps, it delivers exceptional time resolution, supported by both 10/100 Ethernet and USB 2.0 connectivity on the front and rear panels for streamlined data handling and device control.
Engineered for complex signal analysis, the MSO72004C includes video out for external display, and seamless integration into engineering workflows from design validation to production testing, making it a comprehensive tool for high-speed digital designs.
Testwall can supply the used Tektronix MSO72004C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MSO72004C.
