Tektronix P3420
| Attribute | Value |
|---|---|
| Probe Type | High Voltage Differential Probe |
| Bandwidth | 50 MHz |
| Maximum Differential Voltage | ±1400 V (DC + Peak AC) |
| Attenuation Ratio | 100X / 1000X |
| Input Impedance | 8 MΩ / 7 pF (each input to ground) |
| Common Mode Rejection Ratio (CMRR) | 80 dB at 60 Hz |
| Output Voltage | ±14 V maximum into 1 MΩ load |
| Power Supply | Powered via TekProbe interface or external power supply |
| Operating Temperature Range | 0°C to +50°C |
| Connector Type | BNC output connector compatible with standard oscilloscope inputs |
| Model | P3420 |
|---|

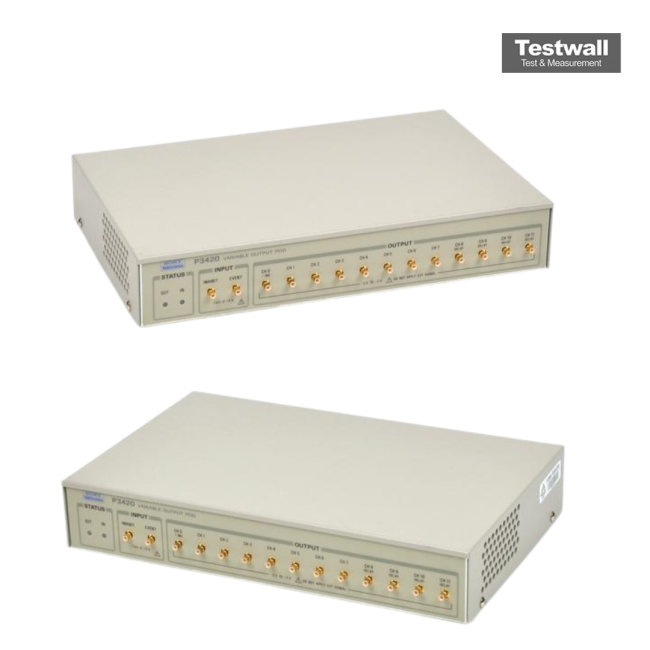

The Tektronix P3420 Variable Output POD, part of the DG2000 Series, enables high-performance digital pattern generation with up to 1.1 Gbps data rates and 256K depth per channel. Supporting up to 36 output channels, it provides precise control of output parameters and flexible data pattern generation across DG2040, DG2020, DG2020A, and DG2030 models.
Ideal for simulating timing and amplitude margins or injecting glitches, the DG2000 Series supports advanced fault insertion and timing tests using an intuitive graphical interface and large display.
Testwall can supply the used Tektronix P3420, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P3420.
