Tektronix MDO3FLEX
| Attribute | Value |
|---|---|
| Bandwidth | Flexible upgrade options from 100 MHz to 1 GHz |
| Analog Channels | 4 analog input channels |
| Sample Rate | Up to 5 GS/s |
| Record Length | Up to 10 M points standard |
| Integrated Spectrum Analyzer | Built-in RF spectrum analyzer with frequency range up to 3 GHz |
| Digital Channels | Optional 16 digital channels (MSO upgrade available) |
| Arbitrary Function Generator | Optional integrated AFG with 50 MHz output |
| Display | 9-inch WVGA color display |
| Serial Bus Analysis | Supports I2C, SPI, RS-232/422/485/UART, USB, CAN, LIN, FlexRay, MIL-STD-1553, and more via optional licenses |
| Connectivity | USB host and device ports, LAN (LXI), HDMI output |
| Model | MDO3FLEX |
|---|

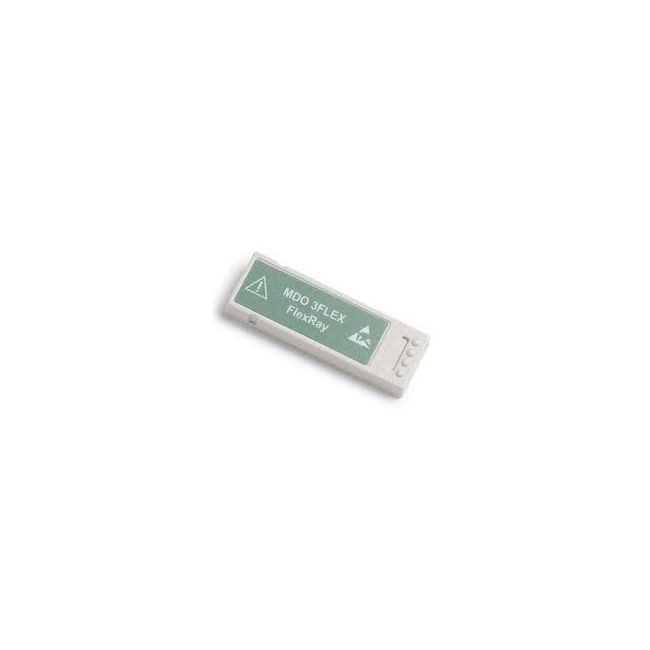

The Tektronix MDO3FLEX is a protocol analysis module for MDO3000 oscilloscopes, specifically engineered for advanced FlexRay debugging. It supports frame-level triggering on Start/End of Frame, CRC errors, and specific frame types. Integrated seamlessly into the oscilloscope, it allows triggering based on identifiers or payloads and detects header/trailer CRC mismatches, sync, null, and startup frames.
Ideal for automotive applications, the MDO3FLEX helps analyze FlexRay bus communication by working alongside analog, digital, and spectrum analysis views. Its license portability adds operational flexibility.
Testwall can supply the used Tektronix MDO3FLEX, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix MDO3FLEX.
