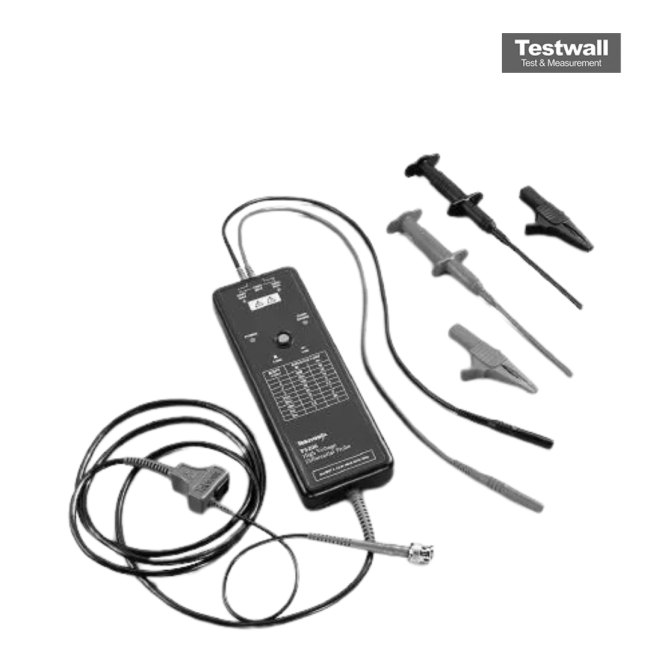

Tektronix P5200A
Probe,50/500X High-Voltage Differential 50MHz
50 MHz Bandwidth
±1300 V (DC + Peak AC) Input Voltage Range (High Voltage)
50X / 500X (switchable) Attenuation Ratio
±1300 V DC + Peak AC Maximum Differential Voltage
±2600 V (DC + Peak AC) Maximum Common Mode Voltage
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Input Voltage Range (High Voltage) | ±1300 V (DC + Peak AC) |
| Attenuation Ratio | 50X / 500X (switchable) |
| Maximum Differential Voltage | ±1300 V DC + Peak AC |
| Maximum Common Mode Voltage | ±2600 V (DC + Peak AC) |
| Common Mode Rejection Ratio (CMRR) | 80 dB at 60 Hz |
| Output Voltage | ±10 V into 1 MΩ load |
| Rise Time | 7 ns |
| Power Supply | Powered via BNC output cable (no external power required) |
| Compatible Oscilloscope Input | 1 MΩ input impedance oscilloscopes |
Tektronix P5200A Options:
- P5200A - A0 - North America power plug (115 V, 60 Hz)
- P5200A - A1 - Universal Euro power plug (220 V, 50 Hz)
- P5200A - A2 - United Kingdom power plug (240 V, 50 Hz)
- P5200A - A3 - Australia power plug (240 V, 50 Hz)
- P5200A - A4 - North America power plug (240 V, 50 Hz)
- P5200A - A5 - Switzerland power plug (220 V, 50 Hz)
- P5200A - A6 - Japan power plug (100 V, 110/120 V, 60 Hz)
- P5200A - A10 - China power plug (50 Hz)
- P5200A - A11 - India power plug (50 Hz)
- P5200A - A12 - Brazil power plug (60 Hz)
- P5200A - A99 - No power cord
- P5200A - C3 - Calibration Service 3 Years
- P5200A - C5 - Calibration Service 5 Years
- P5200A - D1 - Calibration Data Report
- P5200A - D3 - Calibration Data Report 3 Years (with Opt. C3)
- P5200A - D5 - Calibration Data Report 5 Years (with Opt. C5)
- P5200A - R3 - Repair Service 3 Years (including warranty)
- P5200A - R5 - Repair Service 5 Years (including warranty)
- P5200A - SILV200 - Standard warranty extended to 5 years
| Model | P5200A |
|---|
The Tektronix P5200A is a high-voltage active differential probe with a BNC interface, offering up to 200 MHz bandwidth and ±1300 V differential range. Designed for grounded oscilloscopes, it converts floating signals into safe, low-voltage, ground-referenced outputs for accurate analysis.
Ideal for power electronics, including switching power supplies, motor drives, and CRT designs, with safety certification and switchable attenuation.
Testwall can supply the used Tektronix P5200A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5200A.
