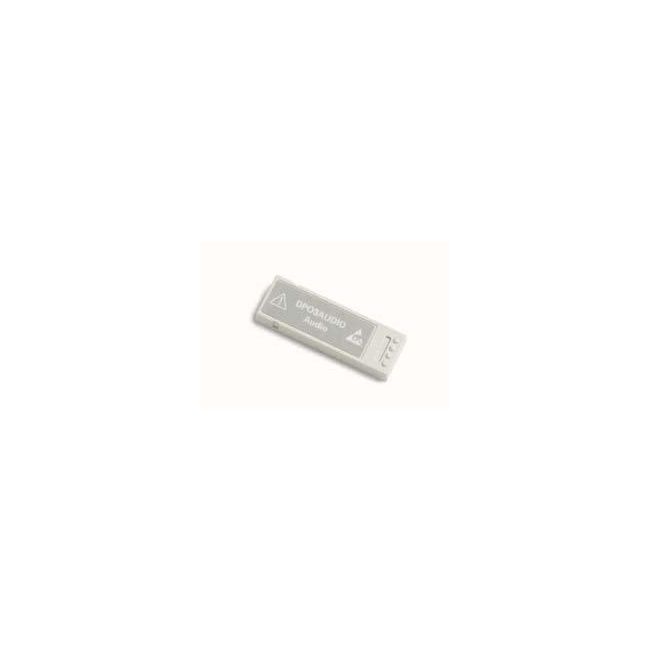

Tektronix DPO3AUDIO
| Attribute | Value |
|---|---|
| Compatible Oscilloscopes | Tektronix DPO3000 and MSO3000 Series |
| Supported Audio Standards | I2S, LJ, RJ, TDM |
| TDM Channels Supported | Up to 8 channels |
| Word Size | 4 to 32 bits per word |
| Trigger Capability | Trigger on audio data, word select, or frame sync signals |
| Decode Display | Bus waveform with decoded audio data displayed in hex, binary, or decimal |
| Search Functionality | Automated search and mark on audio events across the acquisition record |
| License Type | Application module (hardware key required for activation) |
| Installation Method | Module inserted directly into oscilloscope application module slot |
| Operating Temperature | 0°C to +50°C |
| Model | DPO3AUDIO |
|---|
The Tektronix DPO3AUDIO module augments DPO/MSO3000 oscilloscopes with advanced audio protocol analysis, including real-time decoding of I²S, TDM, PCM, and more. It supports protocol-level triggering, pattern-based search tools, and in-depth audio performance metrics like THD and SNR.
Designed for professionals working with digital audio interfaces, it integrates into the oscilloscope's views without extra hardware. It allows frame-level analysis, timing diagnostics, and spectral evaluations.
Testwall can supply the used Tektronix DPO3AUDIO, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix DPO3AUDIO.
