Tektronix P5210
Differential Probe
50 MHz (-3 dB) Bandwidth
100X / 1000X (switchable) Attenuation Ratio
±1300 V DC + Peak AC (100X); ±13,000 V DC + Peak AC (1000X) Input Voltage Range
1300 V RMS (CAT II) Maximum Input Voltage
7 ns (typical) Rise Time
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz (-3 dB) |
| Attenuation Ratio | 100X / 1000X (switchable) |
| Input Voltage Range | ±1300 V DC + Peak AC (100X); ±13,000 V DC + Peak AC (1000X) |
| Maximum Input Voltage | 1300 V RMS (CAT II) |
| Rise Time | 7 ns (typical) |
| Input Impedance | 40 MΩ / 6.5 pF (100X); 40 MΩ / 3.0 pF (1000X) |
| Output Impedance | 50 Ω |
| Dynamic Range | ±12 V at probe output |
| Cable Length | 1.2 m (4 ft) |
| Safety Rating | CAT II 1300 V RMS, IEC 1010-1 compliant |
| Model | P5210 |
|---|

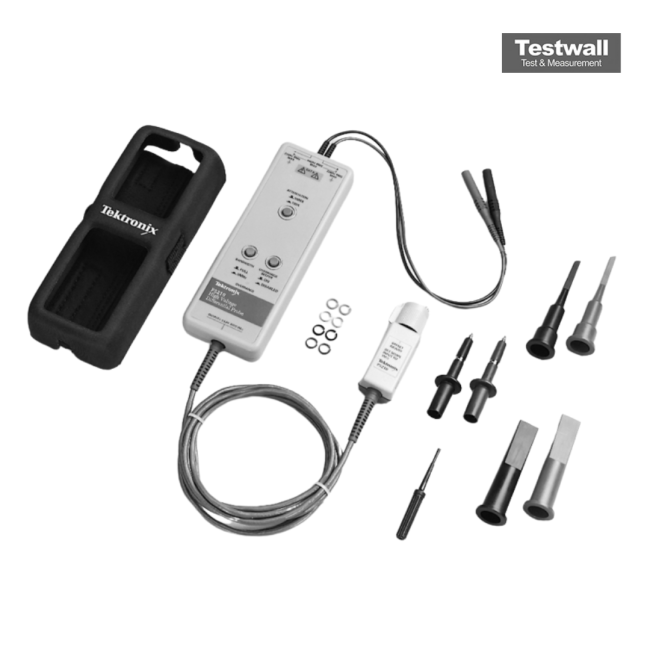

The Tektronix P5210 Differential Probe features 50 MHz bandwidth, allowing measurement of floating voltages up to 5,600 V (DC + peak AC), and 2,200 V common mode (RMS). It includes overrange indicators, switchable attenuation, and bandwidth limit options.
Ideal for power device evaluation and switching power supply design, the P5210 is compatible with TEKPROBE™ interface scopes and the 1103 TEKPROBE® power supply adapter.
Testwall can supply the used Tektronix P5210, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5210.
