Tektronix

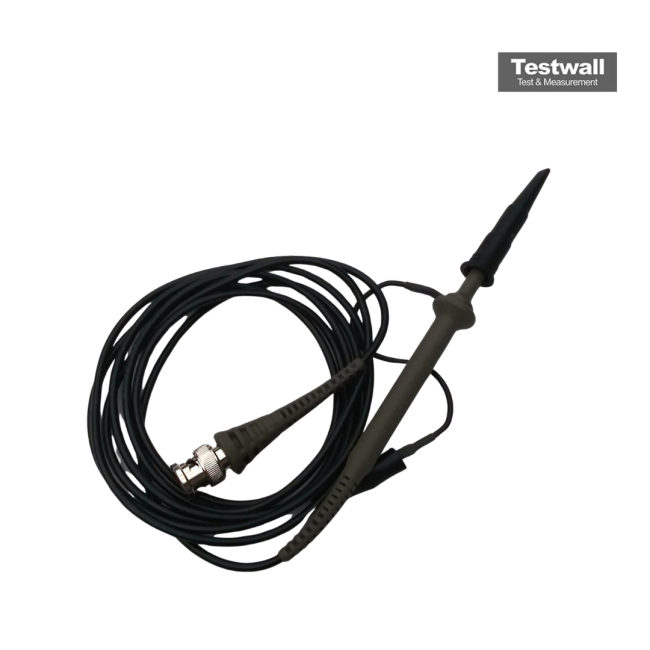

Tektronix P6101B
Passive Voltage Probe
60 MHz Bandwidth
5.8 ns Rise Time
1X Attenuation Ratio
47 pF Input Capacitance
1 MΩ Input Resistance
| Attribute | Value |
|---|---|
| Bandwidth | 60 MHz |
| Rise Time | 5.8 ns |
| Attenuation Ratio | 1X |
| Input Capacitance | 47 pF |
| Input Resistance | 1 MΩ |
| Maximum Input Voltage | 300 V CAT II (DC + Peak AC) |
| Cable Length | 1.5 m (5 ft) |
| Connector Type | BNC |
| Compatible Oscilloscope Input | 1 MΩ oscilloscope input |
| Operating Temperature Range | 0°C to +50°C |
| Model | P6101B |
|---|
The Tektronix P6101B is a 1X passive voltage probe with 15 MHz bandwidth and 300 V CAT II rating, designed for 1 MΩ inputs. It features a molded rubber body, readout capability, and enhanced durability, ideal for Tektronix portable DSO and ART instruments.
Perfect for general-purpose low-frequency voltage measurements in engineering, manufacturing, and service environments with unmatched reliability.
Testwall can supply the used Tektronix P6101B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6101B.
