Tektronix P6015A
20,000V DC or Peak AC Voltage Rating
1000X Attenuation Ratio
75 MHz Bandwidth
4.7 ns Rise Time
100 MΩ Input Resistance
| Attribute | Value |
|---|---|
| Voltage Rating | 20,000V DC or Peak AC |
| Attenuation Ratio | 1000X |
| Bandwidth | 75 MHz |
| Rise Time | 4.7 ns |
| Input Resistance | 100 MΩ |
| Input Capacitance | 3 pF |
| Compensation Range | 10 pF to 40 pF |
| Cable Length | 3 m (10 ft) |
| Working Voltage (CAT II) | 4,000V RMS |
| Compatible Oscilloscope Input | 1 MΩ BNC Input |
Tektronix P6015A Options:
- P6015A - Opt. 1R - 10 ft. length, 1000X attenuation, 75 MHz bandwidth, readout enabled
- P6015A - Opt. 25 - 25 ft. length, 1000X attenuation, 25 MHz bandwidth, no readout
- P6015A - Opt. 2R - 25 ft. length, 1000X attenuation, 25 MHz bandwidth, readout enabled
| Model | P6015A |
|---|

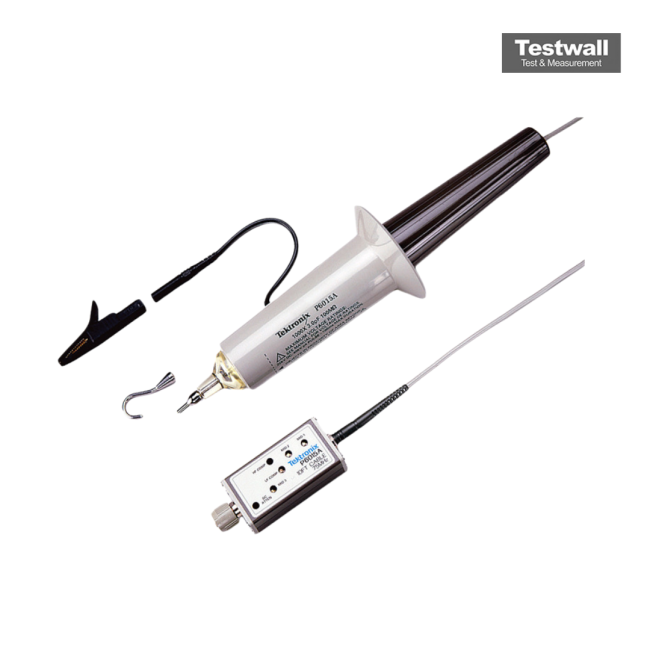

The Tektronix P6015A High Voltage Probe measures up to 20 kV DC and 40 kV peak pulses with 75 MHz bandwidth, ideal for fast, high-voltage signal analysis. It features a 7–49 pF compensation range and a readout option for Tektronix scopes.
This probe includes a silicone dielectric that needs no refilling and a compact compensation box for adjacent amplifier inputs, supporting heavy-duty high-performance tasks.
Testwall can supply the used Tektronix P6015A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6015A.
