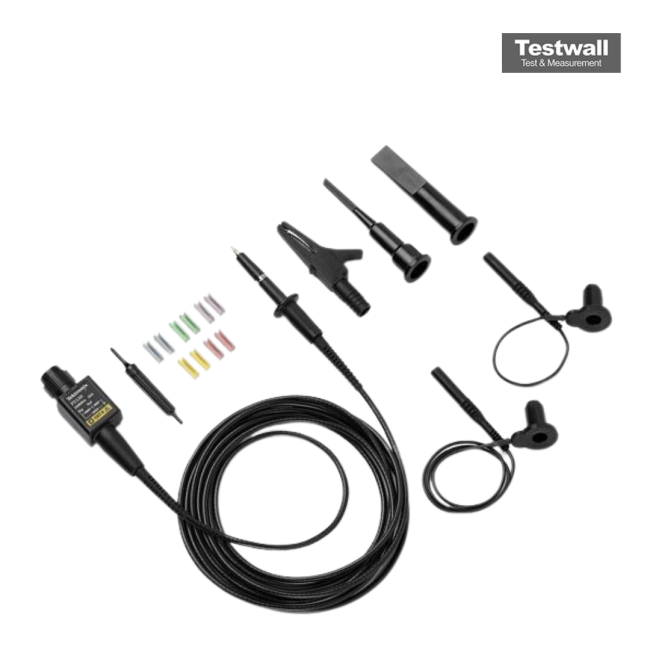

Tektronix P5100
| Attribute | Value |
|---|---|
| Bandwidth | 2500 MHz |
| Attenuation Ratio | 100X |
| Maximum Input Voltage | 2500 V CAT II (DC + Peak AC) |
| Rise Time | 140 ps |
| Input Capacitance | 2.5 pF |
| Input Resistance | 100 MΩ |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 10 pF to 40 pF |
| System Bandwidth (with 1 MΩ oscilloscope input) | 250 MHz |
| Operating Temperature Range | 0°C to +50°C |
Tektronix P5100 Options:
- P5100 - 013-0291-00 - Probe Tip to BNC Adapter
- P5100 - 206-0060-00 - 0.080 in. Diameter Spring Tip
| Model | P5100 |
|---|
The Tektronix P5100 is a high-voltage probe engineered for high-frequency applications, supporting measurements from DC to 250 MHz. It provides a 1000V CAT III rating and can handle up to 2500 VDC+Peak AC. The unit features 100x attenuation with Readout Coding, a compensation range of 7-30 pF, and compatibility with scopes of similar capacitance. Certified to UL3111-1, EN61010-1, and other safety standards.
Ideal for use in demanding environments where high voltage and signal fidelity are critical, the P5100 ensures accurate and safe readings.
Testwall can supply the used Tektronix P5100, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P5100.
