Tektronix P6049B
| Attribute | Value |
|---|---|
| Bandwidth | 250 MHz |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13 pF |
| Maximum Input Voltage | 300 V RMS (CAT II) |
| Rise Time | 1.4 ns |
| Cable Length | 1.2 m (4 ft) |
| Compensation Range | 15 pF to 47 pF |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input connector |
| Probe Type | Passive Voltage Probe |
| Model | P6049B |
|---|

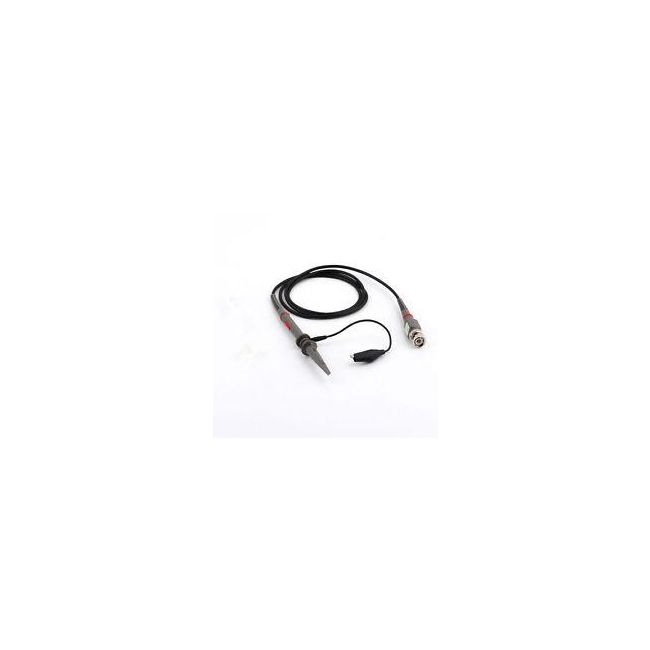

The Tektronix P6049B is a miniature precision passive probe engineered for high-frequency accuracy and minimal circuit loading. It offers 10× attenuation and a high-impedance input, making it perfect for capturing fast transient signals without compromising signal integrity. Its compact tip design supports micro-circuit probing, and the advanced compensation box ensures optimal compatibility with high-bandwidth oscilloscopes.
Designed for advanced electronics testing, the P6049B’s high-frequency handling and low loading characteristics make it an ideal tool for high-speed digital and analog measurements in compact environments.
Testwall can supply the used Tektronix P6049B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6049B.
