Tektronix P6109B
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Attenuation | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13.5 pF (with compensation range 8–18 pF) |
| Maximum Input Voltage | 300 V RMS CAT II |
| Rise Time | 3.5 ns |
| Cable Length | 1.2 m (4 ft) |
| Connector Type | BNC |
| Compatible Oscilloscope Input Impedance | 1 MΩ |
| Operating Temperature Range | 0°C to +50°C |
| Model | P6109B |
|---|

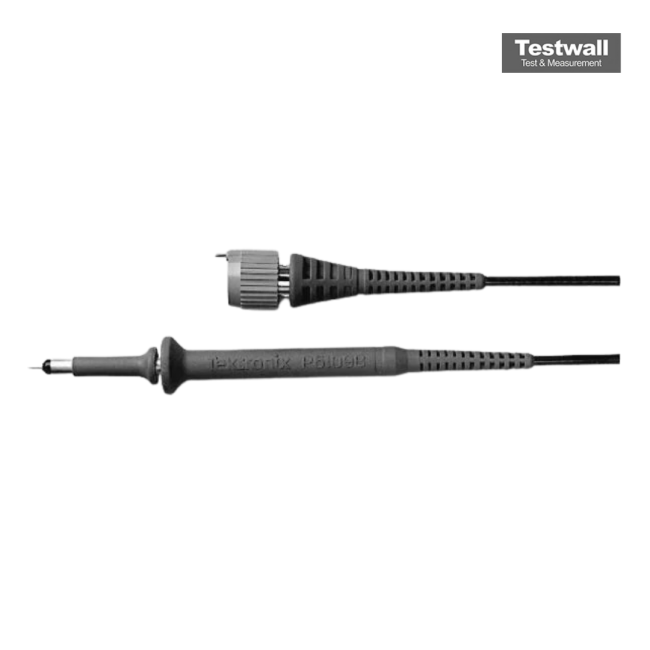

The Tektronix P6109B is a 10X, 100 MHz, 300 V CAT II passive voltage probe designed with hybrid/SMT circuitry on a multi-layer board for improved performance. Its single-piece molded rubber body offers durability and ergonomic comfort. With a miniature tip, readout feature, and safety certifications like UL3111-2-031 and IEC61010-2-031, it ensures precise and reliable electrical measurements.
Ideal for high, medium, and low-frequency general-purpose measurements in engineering, service, and manufacturing applications. Its rugged design and replaceable probe tips make it a daily-use tool for technicians and engineers.
Testwall can supply the used Tektronix P6109B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6109B.
