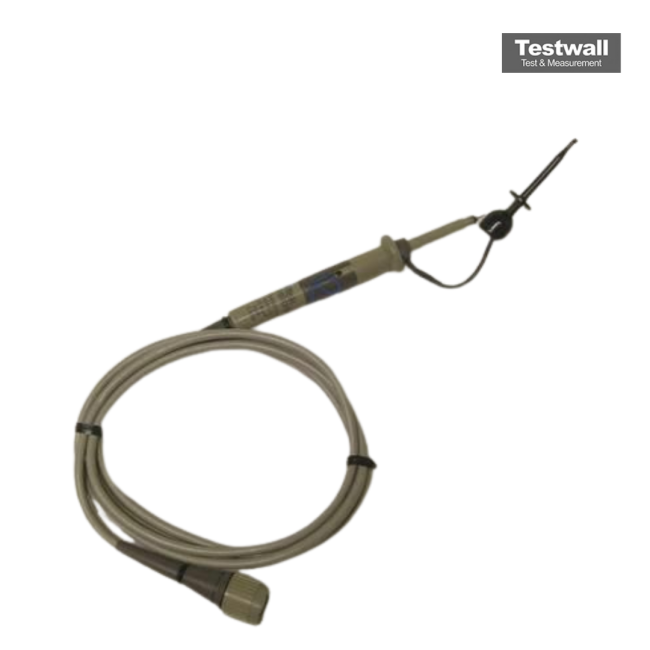

Tektronix P6109
100 MHz Bandwidth
Passive Voltage Probe Probe Type
10X Attenuation Ratio
10 MΩ Input Resistance
13.5 pF Input Capacitance
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Probe Type | Passive Voltage Probe |
| Attenuation Ratio | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 13.5 pF |
| Maximum Input Voltage | 600 V CAT II |
| Rise Time | 3.5 ns |
| Cable Length | 1.5 m (60 in) |
| Connector Type | BNC |
| Compatible Oscilloscopes | Tektronix oscilloscopes with BNC input |
| Model | P6109 |
|---|
The Tektronix P6109 is a 10X passive voltage probe compatible with oscilloscopes with 1 MΩ input impedance and up to 100 MHz bandwidth. It provides 10 MΩ input resistance, 11.8pF–14.8pF capacitance, and includes a readout pin for automatic attenuation detection.
Ideal for precision measurements, the P6109 supports 300 VRMS maximum voltage and fits a wide range of general-purpose oscilloscopes via its 2-meter cable.
Testwall can supply the used Tektronix P6109, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6109.
