Tektronix
Tektronix P6131
300 MHz Bandwidth
1.2 ns Rise Time
10.5 pF (at probe tip, 1X); 9.5 pF (at probe tip, 10X) Input Capacitance
1 MΩ (10X); 1 MΩ (1X) Input Resistance
1X / 10X (switchable) Attenuation Ratio
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Rise Time | 1.2 ns |
| Input Capacitance | 10.5 pF (at probe tip, 1X); 9.5 pF (at probe tip, 10X) |
| Input Resistance | 1 MΩ (10X); 1 MΩ (1X) |
| Attenuation Ratio | 1X / 10X (switchable) |
| Cable Length | 1.3 m (4.3 ft) |
| Maximum Input Voltage | 300 V CAT II (10X); 150 V CAT II (1X) |
| System Bandwidth (with compatible oscilloscope) | Up to 300 MHz |
| Compensation Range | 15 pF to 47 pF |
| Connector Type | BNC |
| Model | P6131 |
|---|

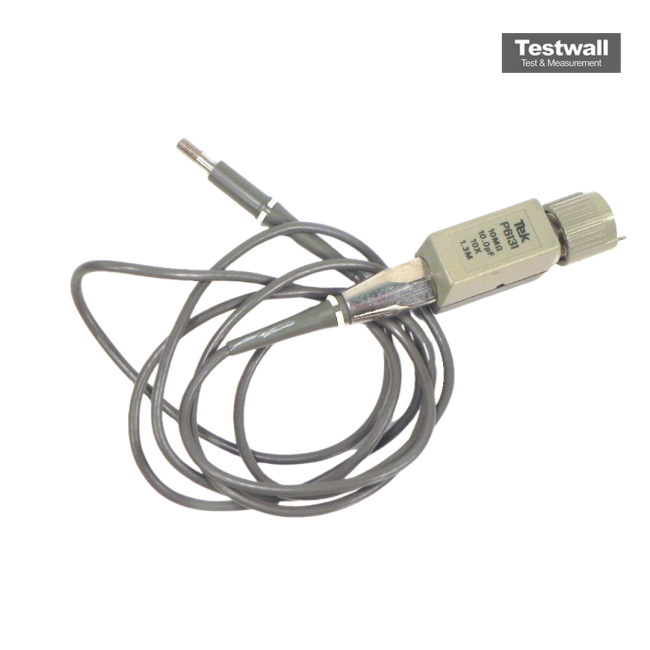

The Tektronix P6131 probe is a compact, modular test accessory featuring HYBRID/SMT circuitry, 10X attenuation, and a full suite of attachments. It delivers a bandwidth of DC to 300 MHz with 10 MΩ input resistance and 10.8 pF input capacitance, supporting compatibility with the 2400 Series and 7A42 scopes.
Designed for tight spaces and dense circuitry, its lightweight 1.3-meter cable and adaptable probe tips ensure high usability and precision.
Testwall can supply the used Tektronix P6131, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6131.
