Tektronix TDS2MM
Application Module Module Type
Tektronix TDS200, TDS1000, and TDS2000 Series Oscilloscopes Compatible Oscilloscopes
Advanced Triggering, Automated Measurements, FFT Analysis, and Serial Communications Triggering and Analysis Measurements Included
Pulse Width Triggering, Line-Selectable Video Triggering Trigger Types
RS-232, RS-422, RS-485, and UART Triggering and Analysis Serial Communications Support
| Attribute | Value |
|---|---|
| Module Type | Application Module |
| Compatible Oscilloscopes | Tektronix TDS200, TDS1000, and TDS2000 Series Oscilloscopes |
| Measurements Included | Advanced Triggering, Automated Measurements, FFT Analysis, and Serial Communications Triggering and Analysis |
| Trigger Types | Pulse Width Triggering, Line-Selectable Video Triggering |
| Serial Communications Support | RS-232, RS-422, RS-485, and UART Triggering and Analysis |
| FFT Window Types | Hanning, Flat Top, and Rectangular Windows |
| Additional Automated Measurements | 16 Automated Measurements including Positive/Negative Pulse Width, Positive/Negative Duty Cycle, and Phase |
| Installation | Plug-in module, installs directly into oscilloscope module slot without tools |
| Power Requirements | Powered directly by the host oscilloscope, no external power required |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Model | TDS2MM |
|---|

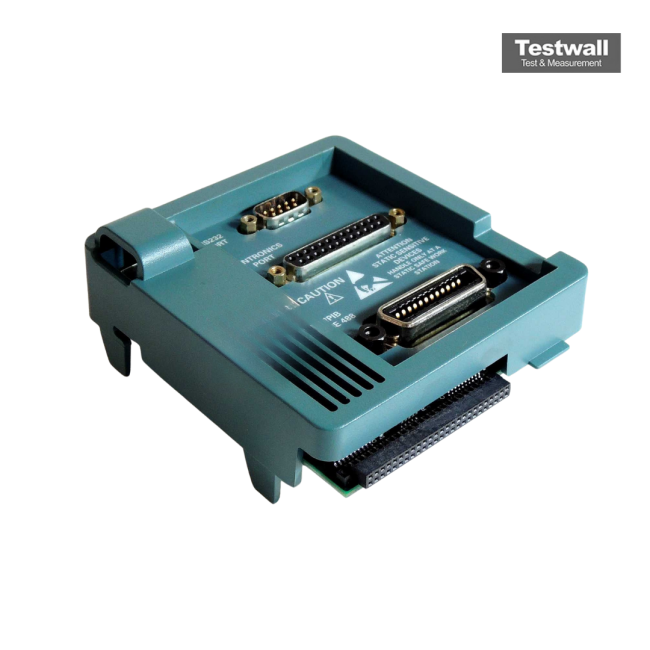

The Tektronix TDS2MM is a menu expansion card designed to extend the capabilities of the TDS2000B oscilloscope series with advanced multi-language prompts, waveform tools, and USB firmware upgrades.
Ideal for engineers requiring enhanced trigger lockout, key mapping, and waveform memory management features in demanding test environments.
Testwall can supply the used Tektronix TDS2MM, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TDS2MM.
