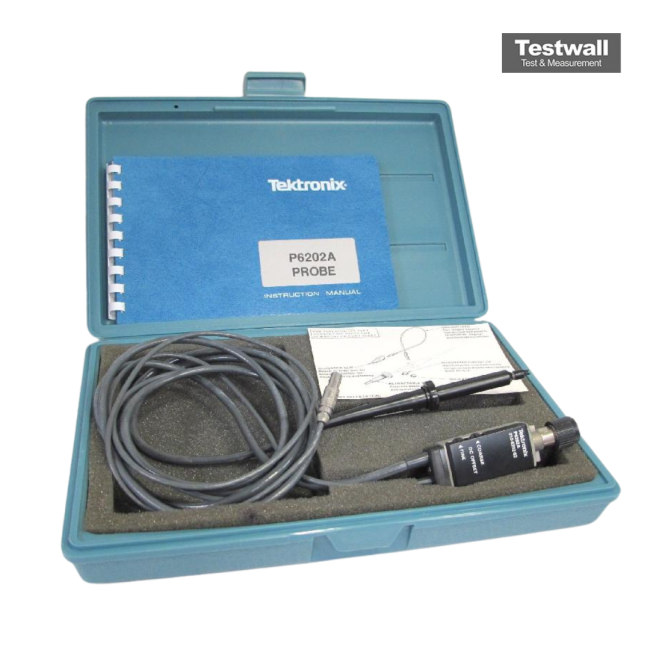

Tektronix P6202A
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Rise Time | 1.75 ns |
| Input Voltage Range | ±15 V |
| Attenuation Ratio | 10X |
| Input Impedance | 1 MΩ / 10 pF |
| Output Impedance | 50 Ω |
| Cable Length | 1.2 m (4 ft) |
| Probe Type | Active FET Probe |
| Power Requirement | Powered via oscilloscope probe power connector |
| Compatible Instruments | Tektronix oscilloscopes with probe power connector |
| Model | P6202A |
|---|
The Tektronix P6202A is an active FET signal acquisition probe designed for 50 Ohm and 1 megaohm interfaces, offering a bandwidth from DC to 500 MHz. It features 2 pF input capacitance, 10 megaohm input resistance, 10X/optional 100X attenuation, AC-DC coupling, ±200 V variable DC offset, and selectable 50 Ohm termination. This probe ensures low circuit loading and high linear dynamic range, compatible with Tektronix 400, 2400, and 7000 Series oscilloscopes.
Ideal for digital design and debugging across ECL, GaAs, MOS (CMOS, FastCMOS, BiCMOS), and TTL logic families, it excels in component characterization and high-speed analog circuit measurement with attention to signal fidelity and timing.
Testwall can supply the used Tektronix P6202A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6202A.
