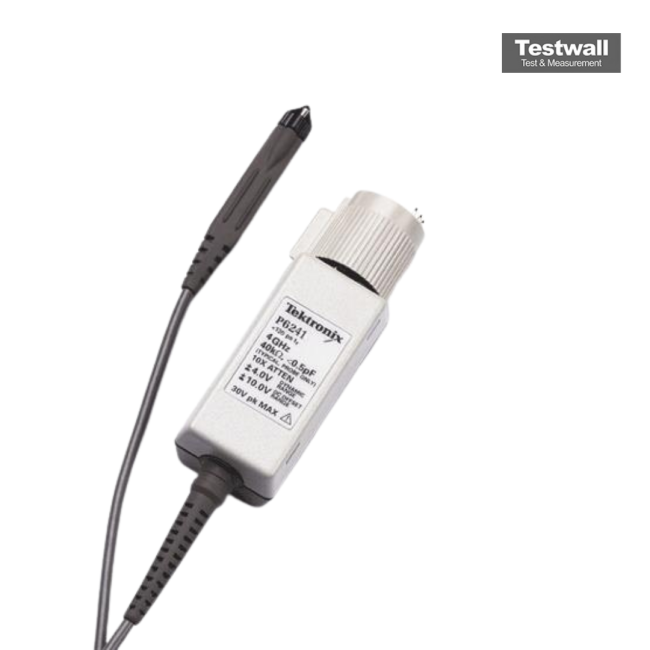

Tektronix P6241
| Attribute | Value |
|---|---|
| Bandwidth | 4 GHz |
| Rise Time | 87.5 ps |
| Input Impedance | 50 Ω |
| Attenuation | 10X |
| Dynamic Range | ±0.6 V (at probe tip) |
| Maximum Input Voltage | ±6 V (DC + peak AC) |
| Cable Length | 1.2 m (approx. 4 ft) |
| Connector Type | SMA |
| Compatible Oscilloscopes | Tektronix TDS694C, CSA803, and other 50 Ω input oscilloscopes |
| Propagation Delay | Approximately 6.5 ns |
Tektronix P6241 Options:
- P6241 - C3 - Calibration Service 3 Years
- P6241 - C5 - Calibration Service 5 Years
- P6241 - D1 - Calibration Data Report
- P6241 - D3 - Calibration Data Report 3 Years (with Option C3)
- P6241 - D5 - Calibration Data Report 5 Years (with Option C5)
- P6241 - R3 - Repair Service 3 Years
- P6241 - R5 - Repair Service 5 Years
| Model | P6241 |
|---|
The Tektronix P6241 offers a 4 GHz bandwidth and <120 ps rise time, making it ideal for high-speed digital testing. Its <0.5 pF input capacitance ensures minimal signal distortion, while the 8 Vp-p dynamic range supports signals with large voltage swings. The compact probe head allows direct access to SMDs and supports a TEKPROBE II BNC interface.
Perfect for use with TDS/CSA7000, 6000, 700, and 600 Series oscilloscopes, the P6241 is also compatible via the Tektronix 1103 Power Supply. It supports applications like jitter analysis, component characterization, and high-speed digital design.
Testwall can supply the used Tektronix P6241, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6241.
