Tektronix P6701B
| Attribute | Value |
|---|---|
| Wavelength Range | 700 nm to 1000 nm |
| Maximum Input Optical Power | 2 mW average |
| Optical Connector Type | FC/PC |
| Bandwidth | 1 GHz |
| Conversion Gain | 700 V/W typical |
| Output Impedance | 50 Ohms |
| Output Connector | SMA |
| Detector Type | Silicon PIN Photodiode |
| Power Supply | Powered via oscilloscope probe interface |
| Compatible Instruments | Tektronix oscilloscopes with TekProbe interface |
Tektronix P6701B Options:
- P6701B - C3 - Calibration Service 3 Years
- P6701B - C5 - Calibration Service 5 Years
- P6701B - D1 - Calibration Data Report
- P6701B - D3 - Calibration Data Report 3 Years (with Option C3)
- P6701B - D5 - Calibration Data Report 5 Years (with Option C5)
- P6701B - R3 - Repair Service 3 Years
- P6701B - R5 - Repair Service 5 Years
- P6701B - A0 - US Plug, 115 V, 60 Hz
- P6701B - A1 - Euro Plug, 220 V, 50 Hz
- P6701B - A2 - UK Plug, 240 V, 50 Hz
- P6701B - A3 - Australian Plug, 240 V, 50 Hz
- P6701B - A5 - Swiss Plug, 220 V, 50 Hz
| Model | P6701B |
|---|

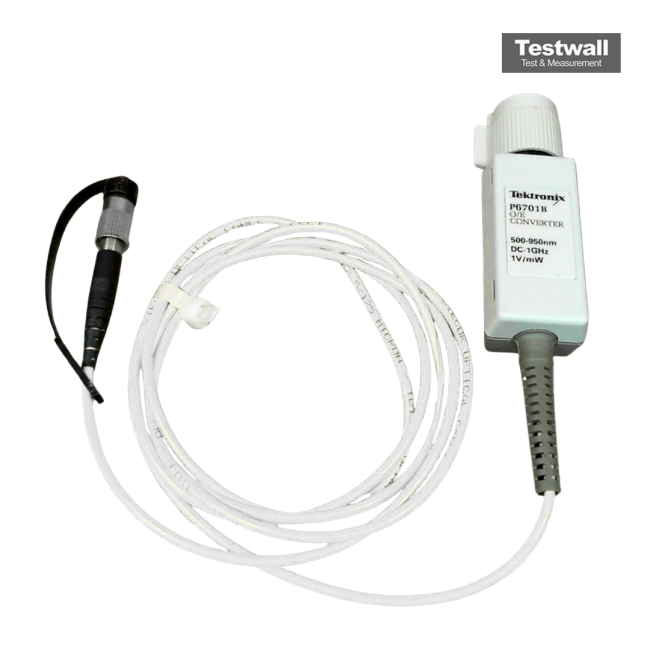

The Tektronix P6701B is an optical-to-electrical converter designed for precision oscilloscope analysis. Operating across a 500–950 nm wavelength range, it features a DC–1.0 GHz bandwidth and 1 V/mW conversion gain. Its low noise performance (<11 pW/√Hz) and ≤500 ps rise time make it ideal for high-speed fiber applications.
This model supports Fibre‑Channel rates up to 1.063 Gb/s and includes a multimode 62.5 µm fiber with FC/PC connector. It is compatible with TekProbe power supplies and the DPO/MSO70000 oscilloscope series.
Testwall can supply the used Tektronix P6701B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6701B.
