Tektronix P6247
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Rise Time | 350 ps |
| Input Impedance | 50 Ω (differential), 1 MΩ with TekConnect adapter |
| Dynamic Range | ±0.65 V (at probe tip) |
| Common Mode Rejection Ratio (CMRR) | Greater than 30 dB at 1 GHz |
| Attenuation Ratio | 10X |
| Maximum Input Voltage | ±7 V (DC + peak AC) |
| Connector Type | TekConnect |
| Cable Length | 1.2 m (approximately 4 ft) |
| Compatible Oscilloscopes | Tektronix TDS6000, TDS7000, CSA7000, and DSA70000 series |
Tektronix P6247 Options:
- P6247 - C3 - Calibration Service 3 Years
- P6247 - C5 - Calibration Service 5 Years
- P6247 - D1 - Calibration Data Report
- P6247 - D3 - Calibration Data Report 3 Years (with Option C3)
- P6247 - D5 - Calibration Data Report 5 Years (with Option C5)
- P6247 - R3 - Repair Service 3 Years
- P6247 - R5 - Repair Service 5 Years
| Model | P6247 |
|---|

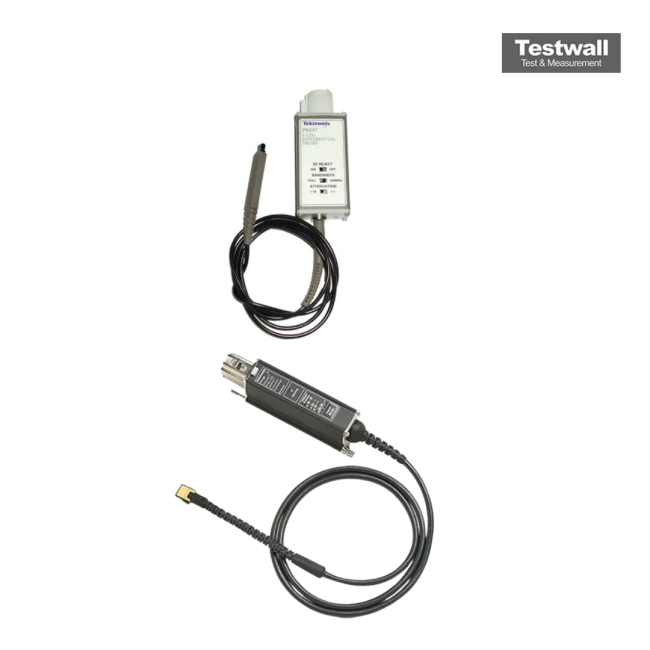

The Tektronix P6247 Differential Probe delivers >1.0 GHz bandwidth with <1 pF differential input capacitance, ensuring precise high-speed signal capture. It supports standard 0.025 in. square pin connectors and provides a superior >60 dB CMRR, with electrostatic discharge tolerance for enhanced durability.
Ideal for use with oscilloscopes, spectrum and network analyzers, it enables accurate measurements in Gigabit Ethernet, IEEE-1394, RAMBUS, and Fibre Channel environments, and is compatible via TEKPROBE® BNC interface.
Testwall can supply the used Tektronix P6247, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6247.
