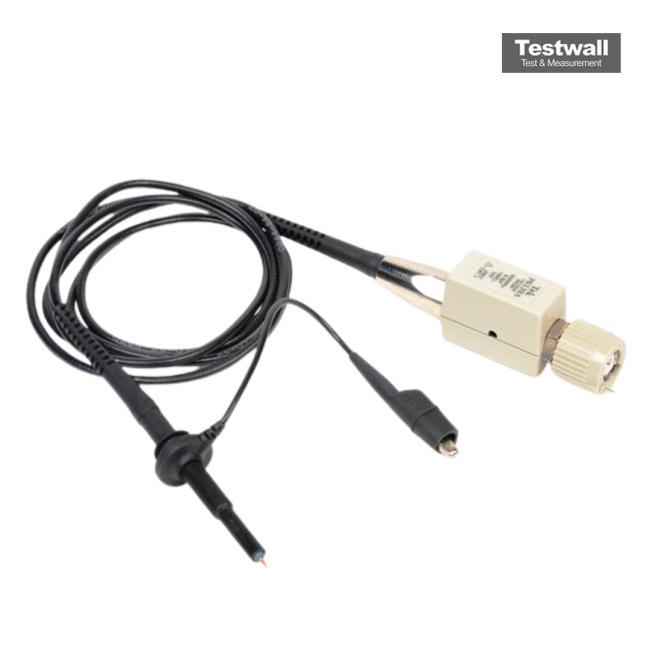

Tektronix P6139A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Attenuation | 10X |
| Input Resistance | 10 MΩ |
| Input Capacitance | 8 pF (with compensation range 8–18 pF) |
| Cable Length | 1.3 m (4.3 ft) |
| Maximum Input Voltage | 300 VRMS CAT II |
| Rise Time | 700 ps |
| Compensation Range | 8 pF to 18 pF |
| Connector Type | BNC |
| Compatible Oscilloscope Input Impedance | 1 MΩ |
| Model | P6139A |
|---|
The Tektronix P6139A is a compact, high-performance voltage probe designed for precise signal measurement with 10x attenuation, ±0.5% accuracy, and a bandwidth of 500 MHz. It offers 10 MΩ input resistance, 8.0 pF capacitance, and compatibility with TDS3054, TDS500, and TDS3012 systems, delivering reliable performance across a wide compensation range of 8 pF to 18 pF.
Suitable for both high and low-frequency applications in engineering, service, and manufacturing, the P6139A ensures safe and accurate relative measurements in demanding electronic environments.
Testwall can supply the used Tektronix P6139A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6139A.
