Tektronix P6417
17 Channels Number of Channels
-2.0 V to +4.0 V Logic Threshold Range
±15 V (non-destructive) Maximum Input Voltage
3.5 ns Minimum Detectable Pulse Width
100 kΩ in parallel with 8 pF Input Impedance
| Attribute | Value |
|---|---|
| Number of Channels | 17 Channels |
| Logic Threshold Range | -2.0 V to +4.0 V |
| Maximum Input Voltage | ±15 V (non-destructive) |
| Minimum Detectable Pulse Width | 3.5 ns |
| Input Impedance | 100 kΩ in parallel with 8 pF |
| Compatible Instruments | Tektronix TLA Series Logic Analyzers |
| Cable Length | 0.3 m (12 inches) |
| Connector Type | Mictor 38-pin connector |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -55°C to +75°C |
Tektronix P6417 Options:
- P6417 - L0 - English Manuals
- P6417 - L99 - No Manuals
| Model | P6417 |
|---|

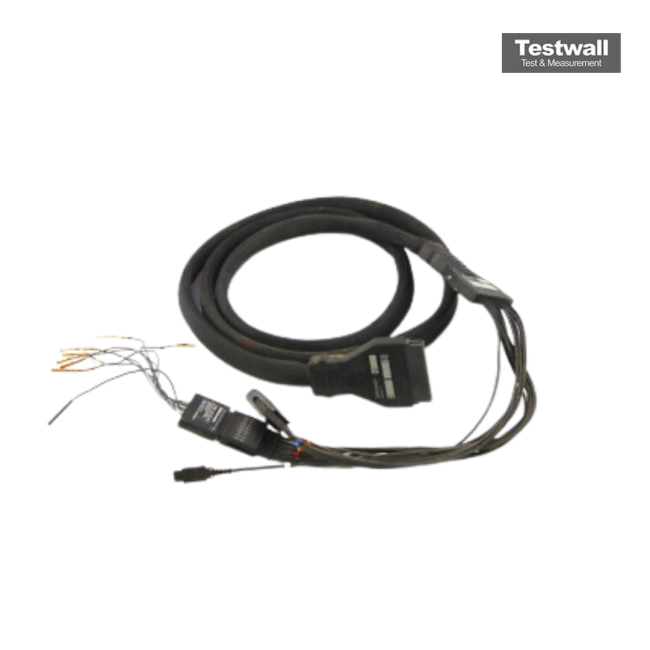

The Tektronix P6417 is a high-performance 17-channel logic analyzer probe with 16 data lines and one clock/qualification channel, supporting ±15 V voltage tolerance, ±100 mV threshold accuracy, and ≤1 ns skew, ideal for precise digital debugging.
Designed for versatile embedded testing, it captures digital waveforms and supports FPGA, microprocessor buses, and mixed-signal systems, with a 1.8 m cable and minimal 2 pF input capacitance.
Testwall can supply the used Tektronix P6417, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6417.
