Tektronix P6418
| Attribute | Value |
|---|---|
| Number of Channels | 18 Digital Channels |
| Maximum Input Frequency | 200 MHz |
| Minimum Detectable Pulse Width | 2.5 ns |
| Input Voltage Range | -2 V to +7 V |
| Threshold Voltage Range | -2 V to +5 V |
| Input Impedance | 100 kΩ ± 1% in parallel with 3 pF |
| Maximum Input Voltage | ±30 V (non-destructive) |
| Compatible Oscilloscopes | Tektronix MSO2000, MSO3000, MSO4000, and MSO5000 Series |
| Cable Length | 0.5 m (approximately 20 inches) |
| Connector Type | 18-channel Mictor-style connector compatible with Tektronix MSO logic analyzer inputs |
| Model | P6418 |
|---|

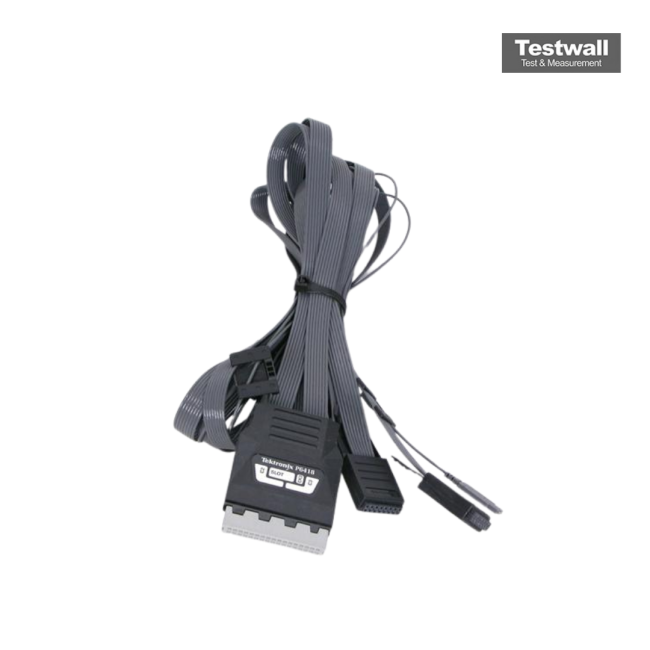

The Tektronix P6418 logic analyzer probe offers 17 total channels, including 16 data channels and one clock/data channel, designed for seamless connection to TLA5000 series logic analyzers. Its versatile connection options via podlet connectors or lead sets ensure compatibility and reliable signal capture across a range of testing environments.
Ideal for general-purpose logic analysis, the P6418 enables accurate measurement and diagnostics in both development and troubleshooting workflows. Its high-quality design guarantees precise data acquisition for complex digital systems.
Testwall can supply the used Tektronix P6418 17 Channel General Purpose Logic Probes For TLA5000 Series, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6418 17 Channel General Purpose Logic Probes For TLA5000 Series.
