Tektronix

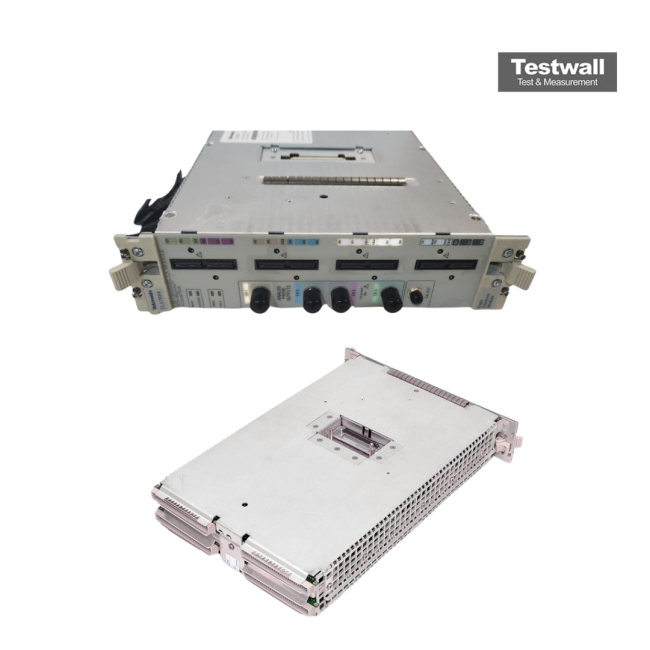

Tektronix TLA7BB4
136 Channels Logic Analyser
136 Channels Number of Channels
667 MHz State / 2 GHz Timing Maximum Sample Rate
500 ps Timing Resolution
Up to 128 Mb per channel Memory Depth
-2.0 V to +5.0 V Threshold Voltage Range
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Maximum Sample Rate | 667 MHz State / 2 GHz Timing |
| Timing Resolution | 500 ps |
| Memory Depth | Up to 128 Mb per channel |
| Threshold Voltage Range | -2.0 V to +5.0 V |
| Input Voltage Range | -2.5 V to +5.5 V |
| Module Type | Logic Analyzer Module |
| Compatible Mainframe | TLA7000 Series Mainframe |
| Form Factor | Plug-in Module |
| Minimum Detectable Pulse Width | 500 ps |
Tektronix TLA7BB4 Options:
- TLA7BB4 - 1S - Increase to 4 Mb record length at 750 MHz state clock
- TLA7BB4 - 2S - Increase to 8 Mb record length at 750 MHz state clock
- TLA7BB4 - 3S - Increase to 16 Mb record length at 750 MHz state clock
- TLA7BB4 - 4S - Increase to 32 Mb record length at 750 MHz state clock
- TLA7BB4 - 5S - Increase to 64 Mb record length at 750 MHz state clock
- TLA7BB4 - 6S - Increase to 2 Mb record length at 1.4 GHz state clock
- TLA7BB4 - 7S - Increase to 4 Mb record length at 1.4 GHz state clock
- TLA7BB4 - 8S - Increase to 8 Mb record length at 1.4 GHz state clock
- TLA7BB4 - 9S - Increase to 16 Mb record length at 1.4 GHz state clock
- TLA7BB4 - AS - Increase to 32 Mb record length at 1.4 GHz state clock
- TLA7BB4 - BS - Increase to 64 Mb record length at 1.4 GHz state clock
- TLA7BB4 - 88 - Factory install
- TLA7BB4 - L0 - English manual
- TLA7BB4 - L5 - Japanese manual
- TLA7BB4 - L10 - Russian manual
- TLA7BB4 - L99 - No manual
- TLA7BB4 - C3 - Calibration service 3 years
- TLA7BB4 - C5 - Calibration service 5 years
- TLA7BB4 - D1 - Calibration data report
- TLA7BB4 - D3 - Calibration data report 3 years (with Opt. C3)
- TLA7BB4 - D5 - Calibration data report 5 years (with Opt. C5)
- TLA7BB4 - G3 - Complete care 3 years (includes loaner, scheduled calibration and more)
- TLA7BB4 - G5 - Complete care 5 years (includes loaner, scheduled calibration and more)
- TLA7BB4 - R3 - Repair service 3 years
- TLA7BB4 - R5 - Repair service 5 years
- TLA7BB4 - R3DW - Repair service coverage 3 years (includes product warranty period; 3-year period starts at time of instrument purchase)
- TLA7BB4 - R5DW - Repair service coverage 5 years (includes product warranty period; 5-year period starts at time of instrument purchase)
| Model | TLA7BB4 |
|---|
The Tektronix TLA7BB4, part of the TLA7000 Series Logic Analyzers, offers 136 channels, a maximum state clock rate of 1400 MHz, and a maximum timing resolution of 50 GHz, making it ideal for complex digital system analysis.
This unit enables precise signal tracking and debugging for high-speed digital designs, providing robust capabilities for engineers working with intricate data buses and logic states.
Testwall can supply the used Tektronix TLA7BB4, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TLA7BB4.
