Tektronix

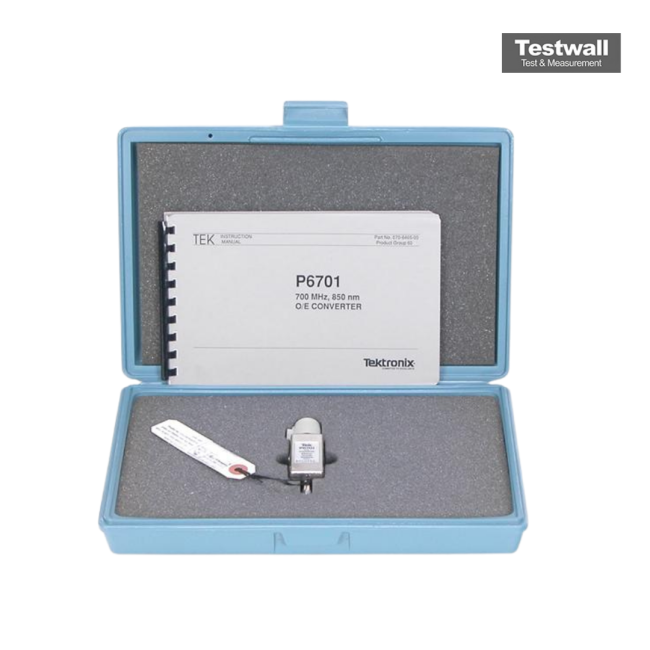

Tektronix P6701A
750 nm to 1650 nm Wavelength Range
+10 dBm (10 mW) Maximum Input Power
DC to 1 GHz Bandwidth
700 V/W typical Conversion Gain
FC/PC Fiber Optic Connector Connector Type
| Attribute | Value |
|---|---|
| Wavelength Range | 750 nm to 1650 nm |
| Maximum Input Power | +10 dBm (10 mW) |
| Bandwidth | DC to 1 GHz |
| Conversion Gain | 700 V/W typical |
| Connector Type | FC/PC Fiber Optic Connector |
| Output Connector | SMA |
| Detector Type | InGaAs Photodiode |
| Rise Time | 350 ps typical |
| Operating Temperature | 0°C to +50°C |
| Compatible Instruments | Tektronix Oscilloscopes with SMA input |
| Model | P6701A |
|---|
The Tektronix P6701A is an optical-to-electrical converter offering a wavelength range of 500–950 nm, 1 V/mW ±8% conversion gain at 850 nm, and up to 850 MHz bandwidth. It supports TEKPROBE interface scopes or others using the Tektronix 1103 power supply.
Perfect for analyzing opto-electronic components, developing electro-optic systems, or testing fiber optic communications to SONET standards, the P6701A ensures precision and high-speed signal conversion.
Testwall can supply the used Tektronix P6701A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6701A.
