Tektronix

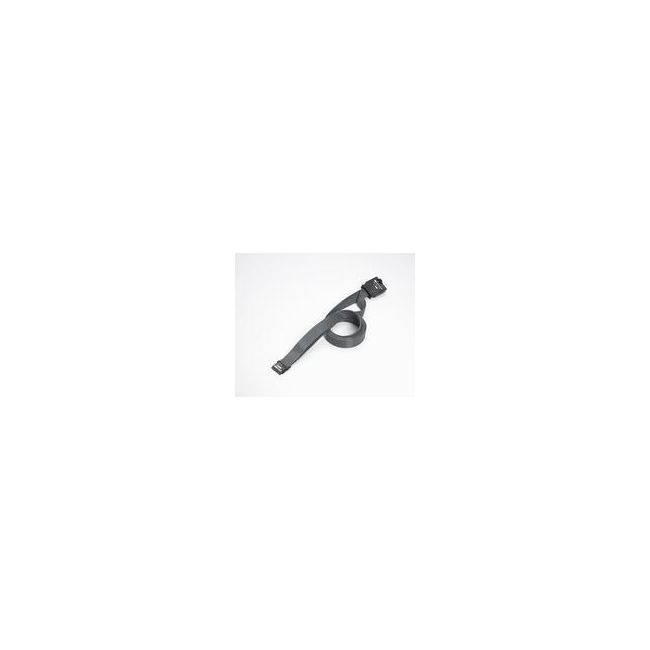

Tektronix P6962
34-channel Single-ended High-density Compression Probe
Logic Probe Probe Type
16 Channels Number of Channels
TLA Series Logic Analyzers Compatible Instruments
-6V to +6V Input Voltage Range
-2V to +4V Threshold Range
| Attribute | Value |
|---|---|
| Probe Type | Logic Probe |
| Number of Channels | 16 Channels |
| Compatible Instruments | TLA Series Logic Analyzers |
| Input Voltage Range | -6V to +6V |
| Threshold Range | -2V to +4V |
| Maximum Input Frequency | 235 MHz |
| Input Impedance | 100 kΩ || 8 pF |
| Cable Length | 1.8 m (6 ft) |
| Connector Type | Mictor Connector |
| Operating Temperature | 0°C to +50°C |
Tektronix P6962 Options:
- P6962 - L0 - English manual
- P6962 - L99 - No manual
- P6962 - CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- P6962 - C3 - Calibration Service, 3 Years
- P6962 - C5 - Calibration Service, 5 Years
- P6962 - R3 - Repair Service, 3 Years
- P6962 - R5 - Repair Service, 5 Years
- P6962 - R1PW - Repair Service Coverage, 1-year Post Warranty
- P6962 - R2PW - Repair Service Coverage, 2-years Post Warranty
- P6962 - R3DW - Repair Service Coverage, 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P6962 - R5DW - Repair Service Coverage, 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P6962 |
|---|
The Tektronix P6962 is a high-density logic analyzer probe with 20 kΩ input resistance and 6.5 Vp-p dynamic range. Engineered with D-Max® Probing Technology, it offers low capacitance and a connectorless footprint for high-speed digital signal integrity.
Ideal for debugging fast buses, processors, and embedded systems, the P6962 enables simultaneous digital and analog acquisition with iCapture™.
Testwall can supply the used Tektronix P6962, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6962.
