Tektronix

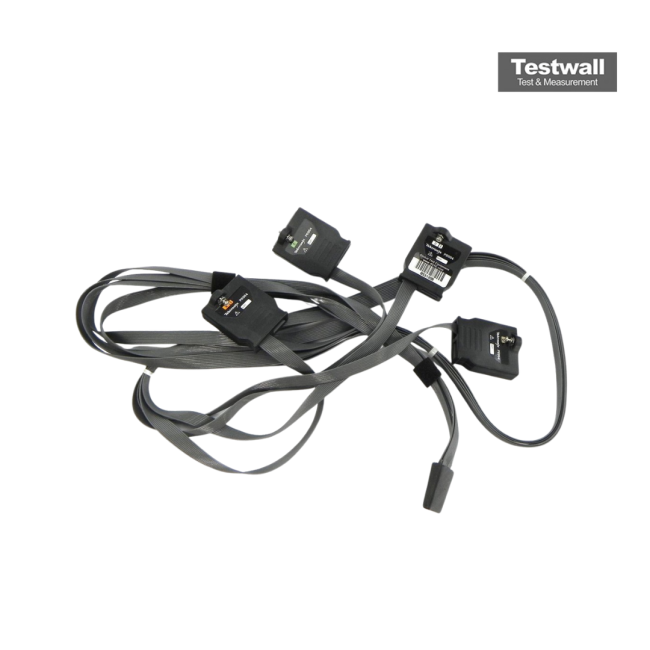

Tektronix P6964
34-channel Single-ended High-density Compression Probe L
Logic Probe / Digital Probe Probe Type
16 Channels Number of Channels
Tektronix TLA Series Logic Analyzers Compatible Instruments
-6V to +6V Input Voltage Range
-2V to +4V Threshold Range
| Attribute | Value |
|---|---|
| Probe Type | Logic Probe / Digital Probe |
| Number of Channels | 16 Channels |
| Compatible Instruments | Tektronix TLA Series Logic Analyzers |
| Input Voltage Range | -6V to +6V |
| Threshold Range | -2V to +4V |
| Maximum Input Frequency | Up to 235 MHz |
| Input Impedance | 100 kΩ |
| Input Capacitance | 1.5 pF |
| Cable Length | 1.8 m (approximately 6 ft) |
| Connector Type | Mictor Connector Interface |
Tektronix P6964 Options:
- P6964 - L0 - English manual
- P6964 - L99 - No manual
- P6964 - CA1 - Single calibration event or coverage for the designated calibration interval, whichever comes first
- P6964 - C3 - Calibration Service, 3 Years
- P6964 - C5 - Calibration Service, 5 Years
- P6964 - R3 - Repair Service, 3 Years
- P6964 - R5 - Repair Service, 5 Years
- P6964 - R1PW - Repair Service Coverage, 1-year Post Warranty
- P6964 - R2PW - Repair Service Coverage, 2-years Post Warranty
- P6964 - R3DW - Repair Service Coverage, 3 Years (includes product warranty period). 3-year period starts at time of instrument purchase
- P6964 - R5DW - Repair Service Coverage, 5 Years (includes product warranty period). 5-year period starts at time of instrument purchase
| Model | P6964 |
|---|
The Tektronix P6964 is a high-density logic analyzer probe from the P6900 Series, offering <0.7 pF loading, 20 kΩ input resistance, and 6.5 Vp-p dynamic range. Designed for TLA7000 Series systems, it ensures high-fidelity digital signal acquisition with minimal circuit intrusion.
Features a connectorless system with D-Max® Probing Technology, enabling simultaneous digital-analog capture via iCapture™ for bus, processor, and embedded system debug.
Testwall can supply the used Tektronix P6964, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix P6964.
